Grate Magnets
IMT MGS Series grate magnets excel at capturing unwanted ferrous metals in applications such as vertical chutes, hopper bin bottoms, railcar loadouts, and loadout spouts. As the product flows through the grates, tramp contaminants are exposed to the strong magnetic field projecting from the tubes and removed from the flow.
Applications
Tire shredding
Auto shredding
Electronic waste
Pallet recycling
Glass cullet
Chemicals
Mining
Hog fuel
Wood pellets
Foundry sand
Pulp processing
Cement
Standalone
All grates are custom made and have the flexibility to fit virtually any shape of hopper or chute.

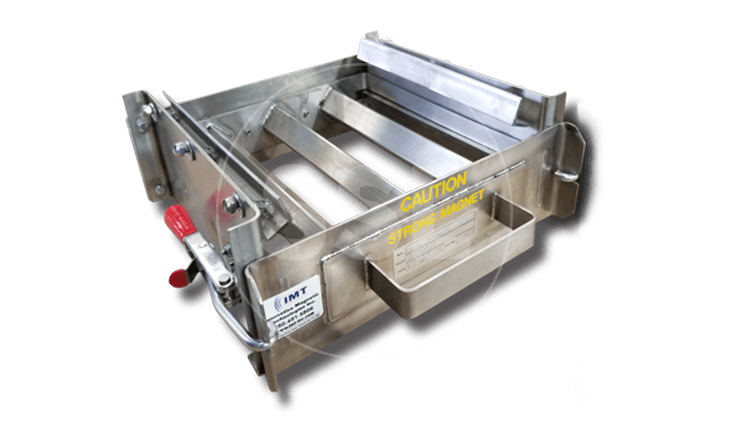

Drawer Style
Drawer style grate magnets are used in chutework and ducts. Inspecting and cleaning the magnetic elements is easy performed by sliding out the grate drawer from the housing.
Self Cleaning

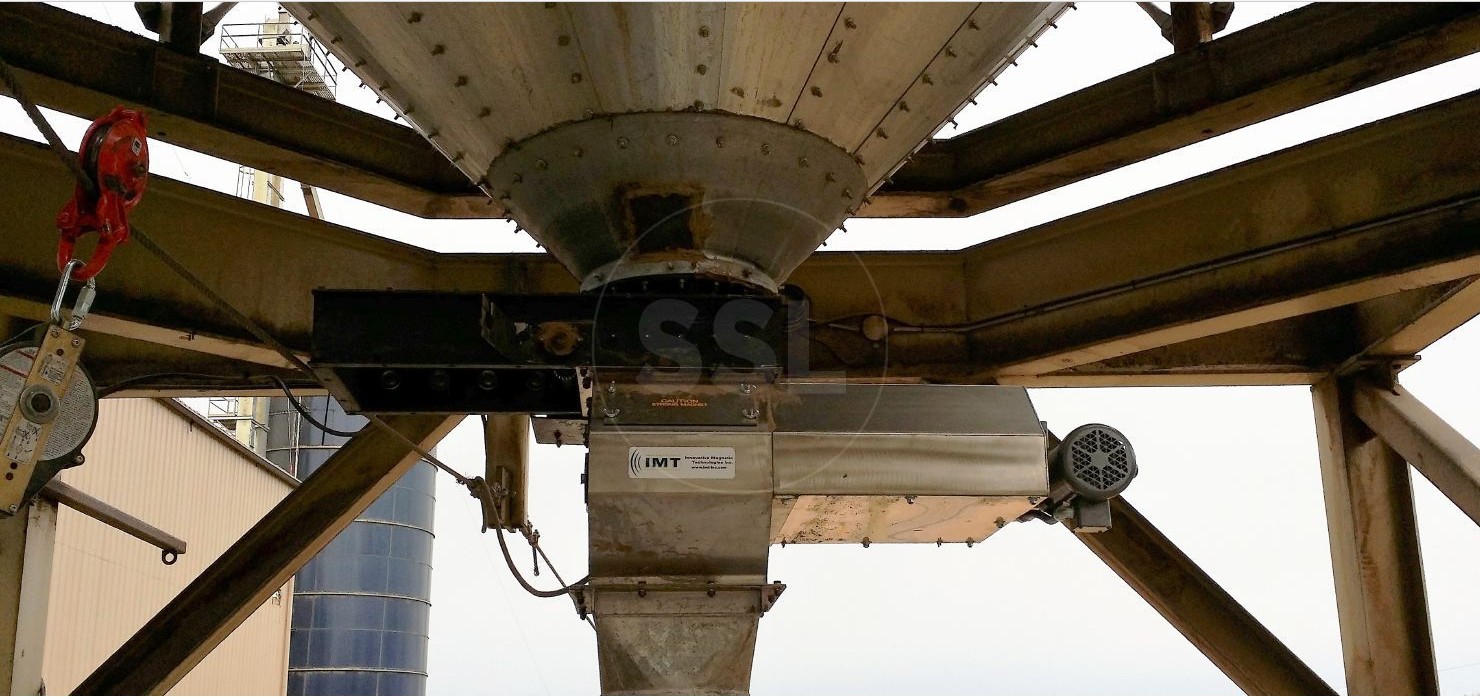

For applications with a high frequency of tramp metal contaminants, the MGS Self-Cleaning models use a motor to withdraw the magnetic core within the tubes to operate the cleaning cycle. This configuration is also especially useful in hard to access areas and remote operations.
