Engineering Materials

Our range of amorphous or semi-crystalline engineering thermoplastics are generally suitable for applications up to 120°C. Engineering plastic materials tend to be of medium cost, with moderate temperature resistance, mid-range strength, and exhibit good impact and chemical resistance. Our selection encompasses cast and extruded Nylons PA6 and PA66, Acetal POM, PBT, PET and Polycarbonates. Additionally, modified grades of all materials are available.

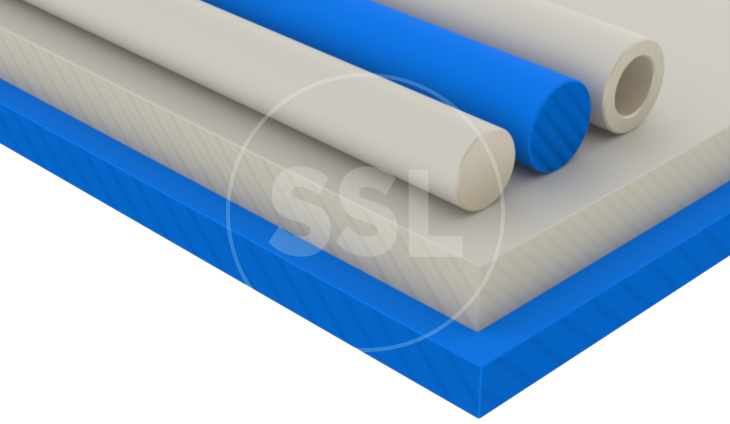

Cast Nylon PA6C

Cast nylon, compared to extruded nylon PA6E, has better physical properties such as higher tensile strength, maximum stiffness and hardness, better wear resistance, lower moisture absorption and better dimensional stability. It particularly suits the production of large parts and thick wall sections.

Colour
Natural & Colours
Specs
TECAST T
LT Service Temp
100ºC
Cast Nylon PA6C Oil Filled

Oil filled nylon is a lubricant modified cast PA6C, particularly suitable for applications involving dry running. The uniform distribution of lubricant over the whole cross-section achieved with oil filled nylon guarantees a constant sliding and wear behaviour throughout the whole service life.

Colour
Yellow
Specs
TECAST L Yellow
LT Service Temp
100ºC
Cast Nylon PA6C MoS2 filled

MoS2 filled cast nylon is similar to standard PA6C but with added solid lubricant Molybdenum Disulfide. Good UV resistance and improved sliding properties. High surface hardness, high strength, good damping properties. Tough material providing high abrasion resistance.

Colour
Black
Specs
TECAST T MO
LT Service Temp
100ºC
Extruded Nylon PA6E

Extruded nylon PA6E provides good damping capacity, good impact strength and a high degree of toughness even at low temperatures. Good wear resistance, especially against rough surfaces finishes. Good overall resistance to chemicals.

Colour
Natural
Specs
TECAMID 6
LT Service Temp
100ºC
Extruded Nylon PA66E

Extruded nylon PA66E has good rigidity, hardness, abrasion resistance and thermal dimensional stability. It has better machinability than PA6E and is particularly suitable for parts which are subjected to high mechanical and thermal loads.

Colour
Natural
Specs
TECAMID 66
LT SERVICE TEMP
100ºC
Acetal POM C & H

Acetal POM offers low moisture absorption, good fatigue strength and rigidity, Its dimensional stability is great for precision parts with tight tolerances. Good sliding characteristics, retains impact strength even at low temperatures and is easily machined.

Colour
Natural, Black & Various Colours
Specs
TECAFORM
LT Service Temp
100ºC
Acetal PE Blend (POM-C + 10PE)

Acetal PE Blend has added polyethylene (PE) as a solid lubricant for improved sliding properties and abrasion resistance. Excellent material for parts & components that require enhanced service properties and extended service life.

Colour
Light Blue
Specs
Acetal POM-C + 10% Polyethylene
LT Service Temp
100ºC
PET

PET

PET, chemically known as polyethylene terephthalate offers good wear properties in moist or dry surroundings, with high dimensional stability due to its low thermal expansion. Good chemical resistance and dielectric properties.

Colour
White
Specs
TECAPET
LT Service Temp
110ºC
PET TF (PET + PTFE)

PET PTFE Blend (PET TF) is similar to standard PET but with a lower coefficient of friction. Enhanced sliding and abrasion resistant properties. Low moisture absorption with excellent chemical resistance.

Colour
Light Grey
Specs
TECAPET TF
LT Service Temp
110ºC

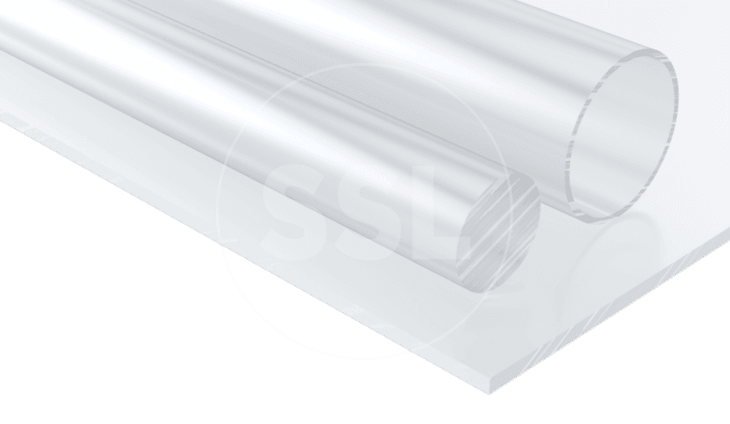

Polycarbonate (PC)

Polycarbonate plastics (PC) are transparent and have exceptional high impact properties over a wide temperature range. Can be hot or cold formed and is virtually unbreakable. Great for machine guarding applications and safety windows.

Colour
Transparent
Specs
TECANAT
LT Service Temp
120ºC

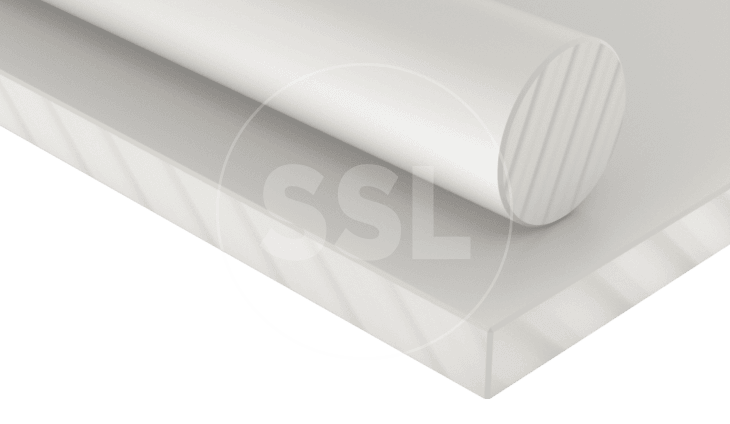

PBT GF30

PBT plastic being 30% glass fibre reinforced offers very high rigidity, high mechanical and creep strength. Ideal material for complicated parts requiring very high dimensional stability. Flame retardant material.

Colour
Grey-White
Specs
TECADUR PBT GF 30
LT Service Temp
110ºC
Extruded Nylon PA66E 30% Glass Filled

Glass filled nylon such as extruded nylon PA66E 30% glass filled increases mechanical properties such as very high strength, rigidity, creep strength, UV resistance and dimensional stability.

Colour
Black
Specs
TECAMID 66 GF30
LT Service Temp
110º
Extruded Nylon PA66E MoS2 Filled

Extruded nylon PA66E MoS2 filled with the addition of molybdenum disulphide improves sliding and frictional properties. Impact strength is reduced, but provides higher service temperature.

Colour
Black
Specs
TECAMID 66 MO
LT Service Temp
110ºC
Extruded Nylon PA6E MoS2 Filled

Our high-quality extruded nylon PA6E MoS2 filled with the addition of molybdenum disulphide improves sliding and frictional properties. Impact strength is reduced as a result.

Colour
Black
Specs
TECAMID 6 MO
LT Service Temp
100ºC
Extruded Nylon PA6E 30% Glass Filled

Extruded Nylon PA6E with 30% glass fibres increases mechanical properties such as higher strength, rigidity, creep strength and dimensional stability. Lower service temp than PA66E GF30.

Colour
Black
Specs
TECAMID 6 GF30
LT Service Temp
100ºC
