Cast Nylon PA6C
TECAST T natural cast nylon offers a combination of good mechanical properties, excellent bearing and wear characteristics, and the large size capabilities of the casting process. The cast polyamide's fatigue resistance, noise damping ability, corrosion resistance, and light weight make TECAST ideal for metal replacement applications, such as bearings, gears, sheaves, and sprockets.
High toughness
Good wear properties
High strength
Availability

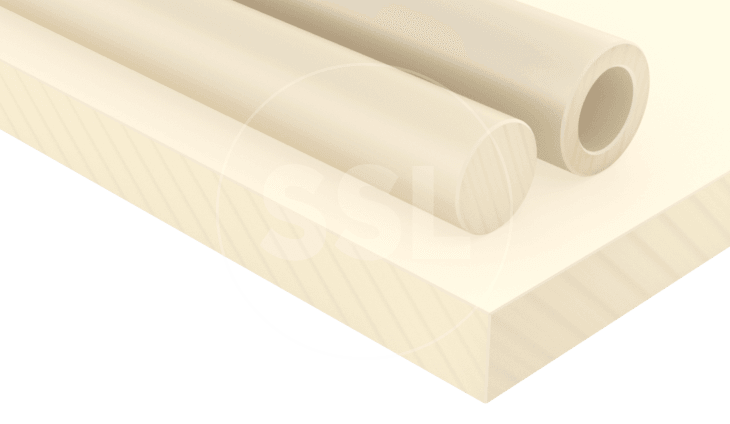

Rod
50mm to 800mm OD
Tube
30mm ID to 750mm OD
Sheet
8mm to 130mm Thick
Colours
Natural (Ivory)
*Blue is indent only
Modified Grades
Yes
Cut to size
Yes
Features
Versatile
TECAST T natural cast nylon offers a combination of good mechanical properties, plus excellent bearing and wear characteristics. The cast polyamide’s fatigue resistance, noise damping ability, corrosion resistance, and light weight makes it quite versatile.
Size
Due to the casting process TECAST T nylon is available in a wide range of sizes in rod, tube and sheet. It can even be cast into semi-finished parts.
Applications
TECAST T cast nylon is ideal for metal replacement applications such as bearings, gears, sheaves, and sprockets. At one-eighth the weight of bronze, TECAST is easier to handle and maintain than most metals, which it typically replaces in industrial wear applications.
Long Term Service Temp
-20°C to +100°C
Moisture Absorption
UV Stable
Compressive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
Cast Nylon PA6C Range
| PRODUCT TYPE | COLOUR | AVAILABLE PRODUCTS & NOTES *SOME ITEMS ARE MANUFACTURED & IMPORTED ON REQUEST |
|---|---|---|

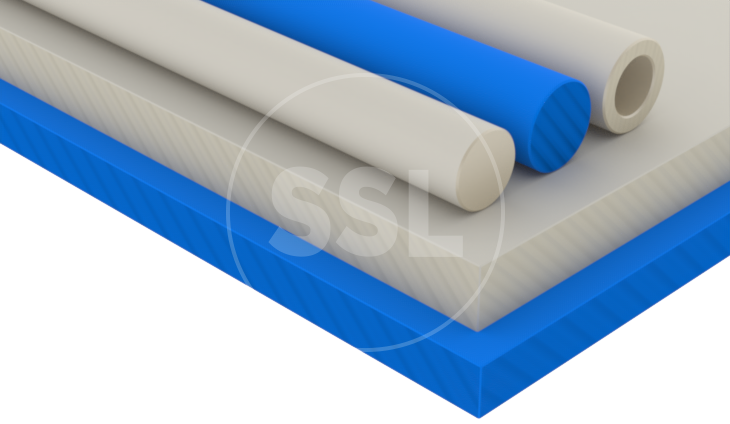

| TECAST T Natural | Ivory (stock item) | Rods, Tubes, Sheets |
| TECAST T Blue | Blue | Rods, Tubes, Sheets |
Want to learn more?
Check out our blog post on the different types of nylon plastics.
Suppliers
Related Products / Services
Cut to Size Plastics
Our cut to size plastic service allows you to purchase a wide range of engineering plastic stock shapes supplied at the exact size and quantity you require.
We have invested in digital cutting equipment that allows us to accurately cut hundreds of pieces for a single order, all to the same tolerance.
We are sure you will find the engineering plastic material you need from our extensive range of high-quality industry leading brands. Supply Services cutting service can cut to size any of our plastic rod, plastic tube, or plastic sheet materials. We also offer a full range of engineering services from CAD design to CNC machining services. Let us turn your purchase into machined, finished components.
Cast Nylon PA6C Oil Filled
TECAST L is a cast nylon polyamide modified with a special oil lubricant, which is particularly suitable for sliding applications, and in dry running conditions.
ColourYellow
SpecsTECAST L Yellow
LT Service Temp100ºC
Cast Nylon PA6C MoS2 Filled
TECAST T MO black is a cast nylon material modified by the addition of molybdenum disulphide (MoS2). The addition of MoS2 brings about an increase of strength without deterioration of toughness.
ColourBlack
SpecsTECAST T MO
LT Service Temp100ºC
