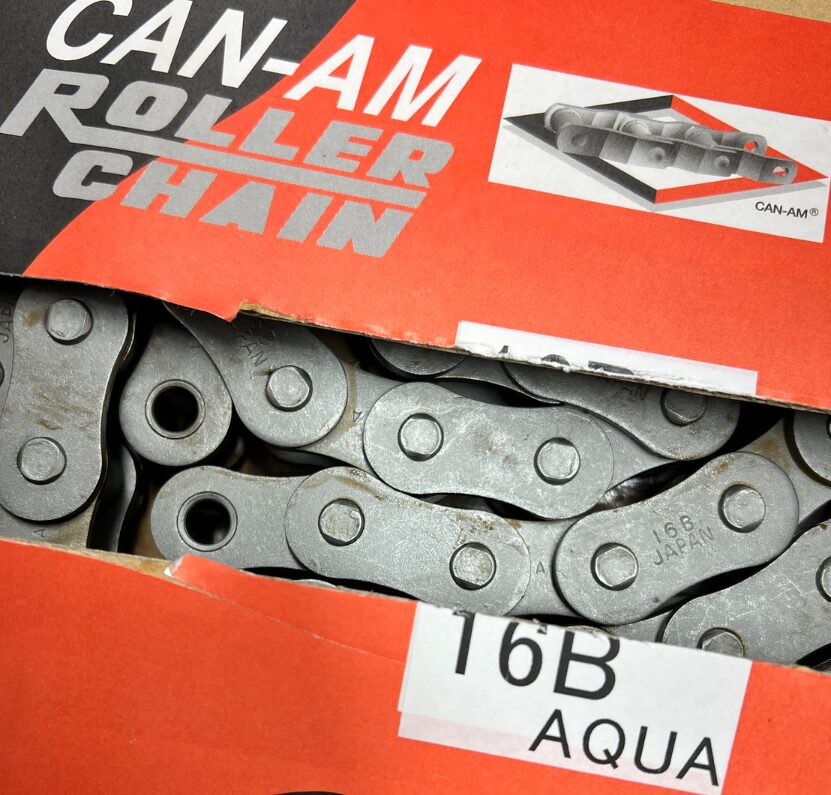

CAN-AM AQUA-Proof SBR Roller Chain
CAN-AM AQUA-Proof SBR roller chain is the perfect choice where corrosion resistance and high strength is needed.
CAN-AM AQUA-Proof SBR roller chains are dimensionally identical to standard BS and ANSI roller chains. However, they feature a specialised dual coating that provides superior rust protection. This advanced coating makes them significantly more corrosion-resistant when compared to nickel or zinc-plated chains, all the while maintaining the same tensile strength as standard carbon steel chain. The dual coating also provides a secondary purpose of reducing friction between the components of the chain. This can help reduce overall wear and extend the life of your chain.
| CAN-AM 16B-1 SBR Chain | Ave. Tensile Strength (kN) | Max. Allowable Load (kN) |
|---|---|---|
| Standard Chain | 66.60 | 16.40 |
| AQUA-Proof Coated | 66.60 | 16.40 |
| Nickel Plated | 66.60 | 12.60 |
| 304 Stainless Steel | 42.20 | 2.06 |

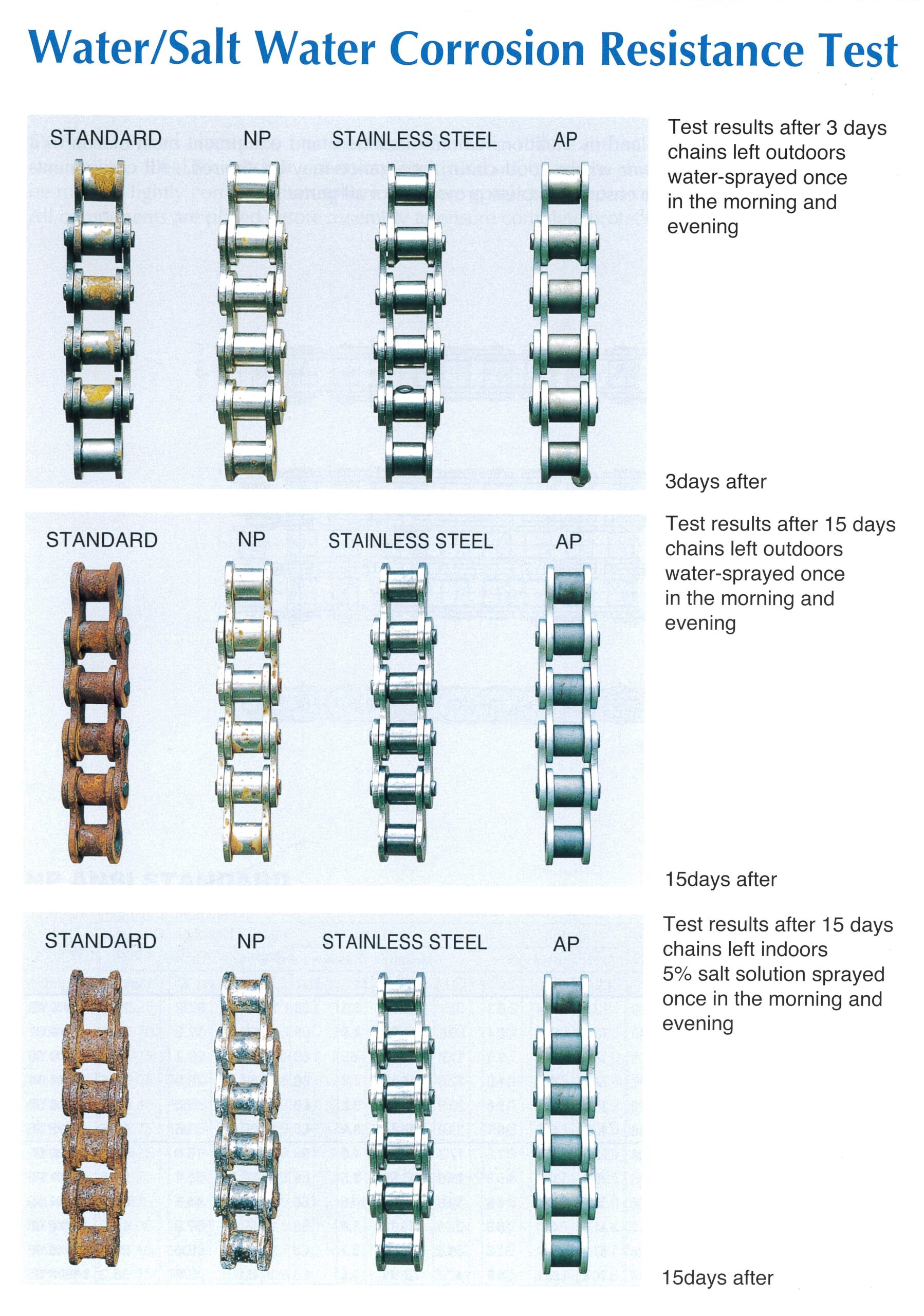

Saltwater Spray Test
| Chain | Initial Rust Observed (Hours) |
|---|---|
| AQUA-Proof Coated | 1000 (no rust) |
| Glossy Chromating | 72 - 96 |
| Colored Chromating | 120 - 240 |
| Zinc Plating | 120 - 240 |
Saltwater Immersion Test
| Chain | Initial Rust Observed (Hours) |
|---|---|
| Nickel Plated | 48 |
| AQUA-Proof Coated | 600 - 840 |
| 304 Stainless Steel | After 840 hours – No Rust |
CAN-AM AQUA-Proof SBR roller chain is suitable in multiple different applications such as sea water environments, washdown equipment, farming equipment and other outdoors applications.
Due to the anti-rust coating AQUA-Proof chain is not suitable for applications where the chain may contact food. In this instance it is recommended that you use stainless steel roller chain.

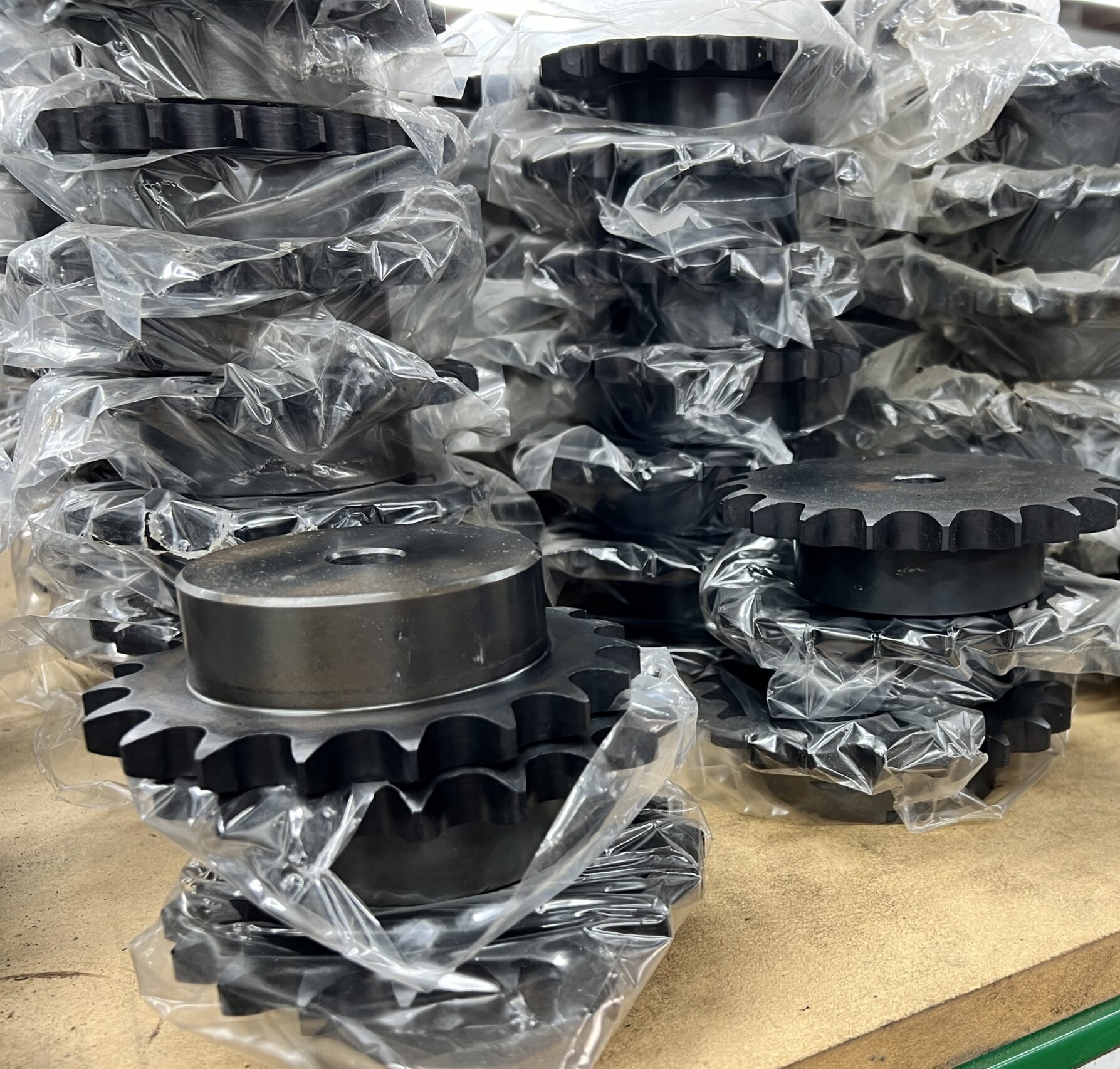

CAN-AM AQUA-Proof SBR chain will run on standard roller chain sprockets stocked by Supply Services.
