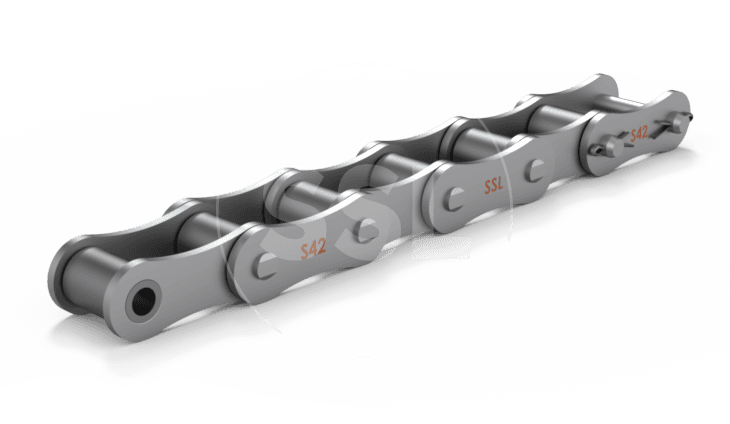

Agricultural Roller Chains
Agricultural roller chains by CAN-AM in S, C & CA type are available in various styles & are normally wider than standard roller chains. Standard black finish or zinc plated for better protection from the elements. Pintle chains (662, 667, 88K), cast combination chains (C55, C188, C131) are also available - see our conveyor chains section for pintle & cast combination chains.
Wide range of S&C type agricultural chains to suit all types of machinery
Available in riveted pin & cotter pin construction
Waisted & straight sidebar variants
Availability
Pitch sizes
29.2mm to 66.2mm
Strands
Simplex
Lengths
10ft boxes or 50ft rolls
Connector Links Available
Yes
Attachments Available
Yes
Sprockets Available
Yes
Features
Applications
Balers, combine harvesters, fertiliser spreaders, elevators, farm equipment and more.
Long Service Life
CAN-AM chains are designed to last longer than any other manufacturers chain.
Huge Range
We carry a large stock of S, C & CA type agricultural chains, contact us to discuss your requirements as not all chains are listed on the website. Some of the S range includes S32 to S88 & the C range CA2060H to CA550.
Pintle Chains
We stock a range of agricultural pintle chains such as 662, 667, 88K. Open barrel constructions. See our conveyor chain section for more information.
Cast Combination Chains
Also stocked is a large range of cast combination chains for the agricultural industry. Heat treated malleable iron centre links with carbon steel side bars. See our conveyor chain section for more information.
Agricultural Roller Chain Range
| Pitch Size (mm) | S Type (waisted sidebar) | C Type (straight sidebar) |
|---|---|---|
| 29.21mm | S32 | - |
| 34.93mm | S42 | - |
| 38.10mm | S52 | CA2060H CA2063H |
| 38.4mm | - | 38.4R 38.4V 38.4VB |
| 41.40mm | S55 S55R S55RH A557 | CA550 CA550V CA555 CA557 |
| 41.91mm | S62 | S62F3 |
| 42.01mm | - | CA620 |
| 50.80mm | CA650 | - |
| 58.34mm | S77 | - |
| 66.27mm | S88 | - |
| Other agricultural chains are available |
