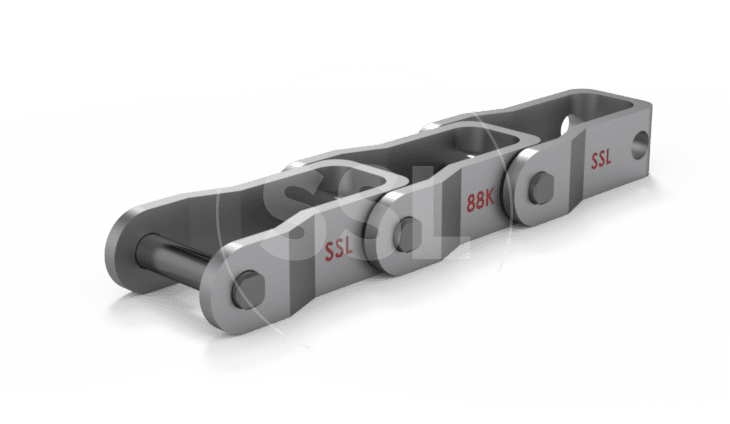

Steel Pintle Chains

Steel pintle chains by CAN-AM were originally developed for smudgy, sticky agricultural environments & have open barrels to reduce material build-up. Generally steel pintle chains are used in applications such as spreaders, feeder systems & spray boxes. The open barrel stops seizure that would otherwise occur with a closed barrel chain. Also for power transmission or general conveying.

Simple one-piece style, designed with open barrel construction
Widely used in applications involving sticky, clumpy materials
Heat treated components with riveted pins

Download Specs

Availability

Pitch Sizes

1.664" to 2.609"

Styles

Cranked Link

Lengths

10ft rolls

Rivets & Conn Links Available

Yes

Attachments Available

Yes

Sprockets Available

Yes

Features

Attachments

Simple to weld industry standard attachments (A, F, K etc) in the field or at time of purchase. Custom attachments can be fabricated on request to suit any requirement.

Applications

A versatile chain that is commonly found in agricultural applications involving materials that are sticky & clump. Spreaders, feeder systems, spray box applications, plus general power transmission & conveying.

Quality Materials

Steel Pintle chains are made from quality steel and come factory standard with heat treated components for long service life.

Steel Pintle Chain Range

Pitch Size (inches)	Steel Pintle Chains
1.664"	662
2.250"	667 667XC 667K 667KC 667XH
2.313"	667H
2.609"	88K

Conveyor Chain Sprockets

Conveyor chain sprockets designed to accurately match the conveyor chain, the attachments and the application it is being used for. Common materials are mild steel, Hardox 400 abrasion resistant steel or induction hardened C1045.

Tooth Count

5-25 or custom

2.609″ Pitch Universal Sprockets

2.609" pitch universal sprockets are designed to suit a wide range of conveyor chains such as 81X, WH78, LXS882, C188 & H78. Our induction hardened universal sprockets are ready for immediate dispatch to your site.

Tooth Count

8-16
