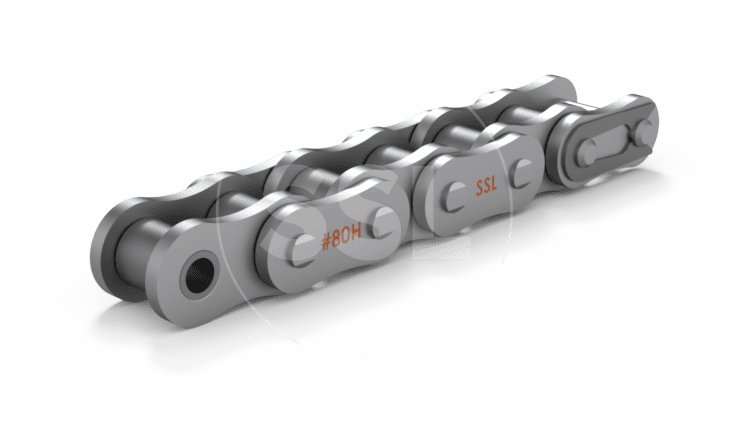

ANSI Heavy Roller Chains
ANSI Heavy roller chains are the ideal power transmission chain where the drive is subjected to heavy shock loads, multiple start/stops or reversing. ANSI heavy series chains use the link plate from the next larger chain size utilising a thicker link plate which provides an increase in fatigue resistance.
Built for severe operating conditions
Exceeds industry standards
Low elastic elongation
Availability
​Pitch Sizes
​3/4″ (60H-1) to 3″ (240H-1)
​Strands
​Simplex, Duplex, Triplex & more​
​Lengths
​​10ft boxes & 50ft rolls​
​Connector Links Available
​Yes
​Attachments Available
Yes
​Sprockets Available
Yes
Features
Suitable for High Loads​
​Shock Resistant
​Fatigue Resistant
​20% Higher Breaking Strength
​Hardened High Tensile Pins
​High Power Transmission Capacity
ANSI Heavy Roller Chain Range
| Pitch Size (inches) | Simplex | Duplex | Triplex | Quadruplex |
|---|---|---|---|---|
| 3/4" | 60H-1 | 60H-2 | 60H-3 | 60H-4 |
| 1" | 80H-1 | 80H-2 | 80H-3 | 80H-4 |
| 1 1/4" | 100H-1 | 100H-2 | 100H-3 | 100H-4 |
| 1 1/2" | 120H-1 | On Request | On Request | On Request |
| 1 3/4" | 140H-1 | On Request | On Request | On Request |
| 2" | 160H-1 | On Request | On Request | On Request |
| 2 1/4" | 180H-1 | On Request | On Request | On Request |
| 2 1/2" | 200H-1 | On Request | On Request | On Request |
| 3" | 240H-1 | On Request | On Request | On Request |
