Cast Conveyor Chains

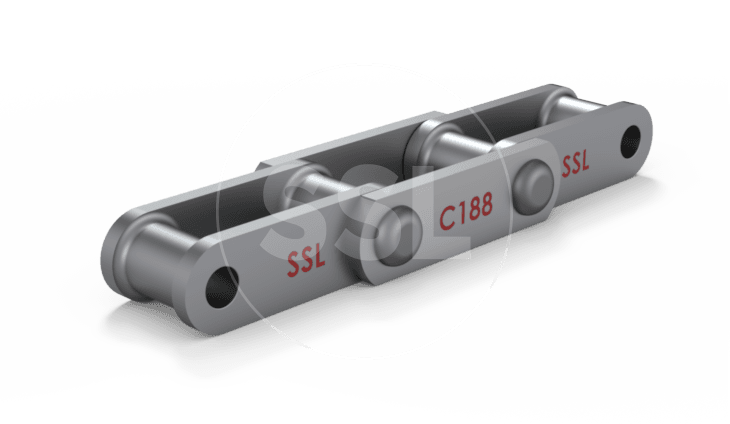

Cast conveyor chains from CAN-AM Chains are available in either malleable iron, cast steel or a combination of both. Available in H class cranked link or C class straight sidebar. C class combination chains have carbon steel outer side bars which allow welding of attachments. Cast conveyor chains are also available in rooftop variants.
Designed to absorb impact, shock & loads
Crank link (H class) or straight sidebar (C class) styles
Rooftop versions available
Availability
​​​Pitch Size​​s
​1.630″ to 8.000″​
Styles​
Cranked or Straight Sidebar​
​Lengths​
​10ft rolls
Attachments Available
Yes
​​​Rivets & Conn Links Available​​​​
Yes
​​Sprockets Available​
Yes
Features
​​Chain Selection​
​​A choice of quality CAN-AM H&C class cast or combination conveyor chains. Heat treated components. Straight sidebars or cranked. See the chain range at the bottom of this page.
Malleable Iron, Alloy Steel and Manganese Steel
Various materials are used for the chain depending on the application. Malleable iron for light duty, alloy steel for high strength and abrasion resistance and manganese steel for its toughness and work hardening properties.
​Roof Top Styles​​
​A range of cast roof top conveyor chains to suit your application. Available in C class (straight side bar) with industry standard rooftop, camelback & unitop profiles. See our roof top chain page for the full range of rooftop chains.​
Cast Conveyor Chains Range
| Pitch Size (inches) | Cranked Link | Straight Sidebar | Roof Top |
|---|---|---|---|
| 1.630" | - | C55 | C55A C55B C55C |
| 2.308" | - | C77 | - |
| 2.609" | H78 | C188 | H78A H78B |
| 3.075 | H82 | C131 | - |
| 4.000" | H124 | C102B | H130 H138 |
| 6.000" | H106 H110 | C132 C157 | - |
| 6.050" | H132 HD132 | - | - |
| 8.000" | HD480 | - | - |
