Chanex® Chain Guides & Profiles

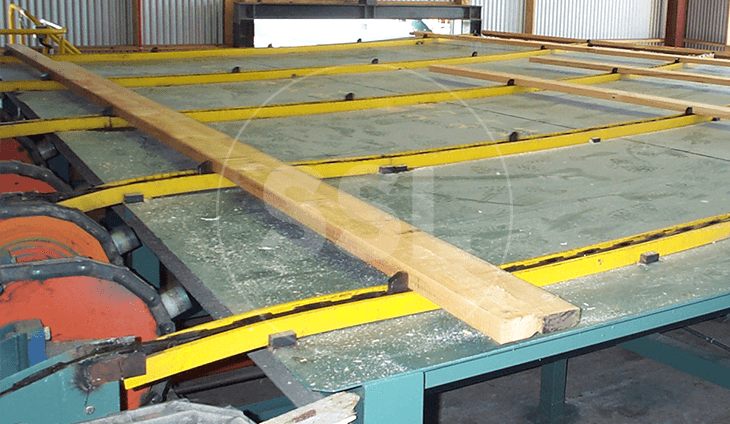

Chanex® chain guides & profiles offer all the advantages of UHMWPE plus the benefits of low cost conveyor construction. Chanex® is simply welded or bolted in-place. Bright yellow in colour, there are numerous profiles available to suit a range of conveyor chains such as C2060H, C2080H, 81X, WH78, WH124 & WH132. We stock a wide range of profiles off the shelf.
Reduce wear & extend chain life
Quieter site operation due to less chain squeal
Reduced power consumption due to less friction
Availability
Lengths
10ft & 20ft sections
Standard Profiles
19 Different Choices
Custom Profiles
Made To Order
Tru-Track Options
Yes
To Suit Chains
From 1.5″ to 6″ pitch
Material
UHMW-PE thermoplastic
Features
Extend Chain Life
Chanex® is manufactured from UHMW-PE which has a low coefficient of friction enabling very smooth chain flow, protecting the chain from metal to metal contact & proven to extend chain service life. With its excellent abrasion resistance it will outlast steel in most applications.
Tru-Track Option
Chanex® is also available with Tru-Track options where the chain profile is formed into Chanex® to perfectly match the chain. This allows for optimum chain tracking & also supports the chain roller or barrel & side plates at the same time.
Profile Range
With 19 profiles available, Chanex® covers most of the standard bulk material handling conveyor chains in the market. From 1.5″ pitch chains such as C2060, 2.609″ pitch chains such as 81X, 81XHD, WH78 & H78, to larger pitch chains such as 4″ pitch WH124 & 6″ pitch WH132. Custom profiles can be manufactured.
Please click the Download Specs button above to view the profiles & sizes in larger format.
Chanex® Range
| Product | Description | Tru- Track | Colour | Lengths/Rolls | To Suit Chain |
|---|---|---|---|---|---|

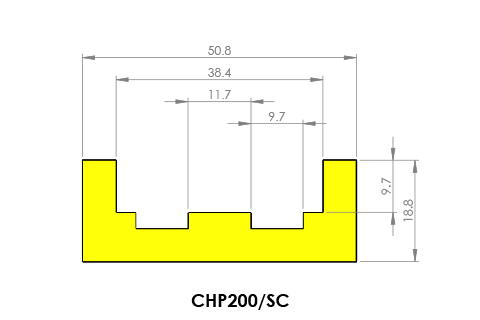

| CHP200/SC | 2" Scanner Transfer Chanex | Yes | Yellow | 20ft lengths | C2060 |

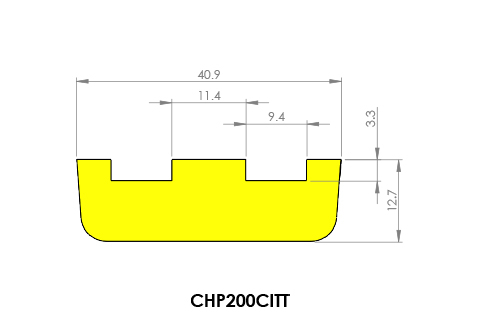

| CHP200CITT | 2" Channel Insert | Yes | Yellow | 200 & 500 ft rolls | C2060 |

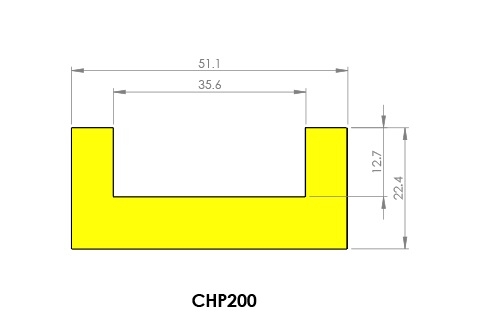

| CHP200 | 2" Standard Chanex | - | Yellow | 20ft lengths | RC80, C2060, C2080 |

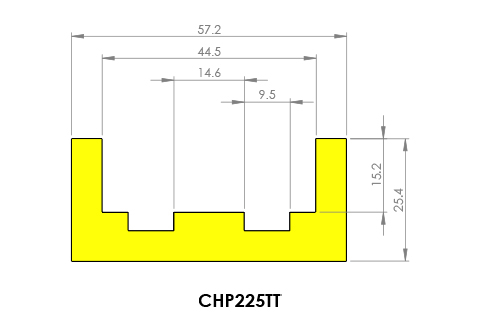

| CHP225TT | 2 1/4" Chanex | Yes | Yellow | 10ft lengths | C2080, C2080H |
| CHP50250-B | 2 1/2" Low Wall Chanex | - | White | 10ft lengths | Various |

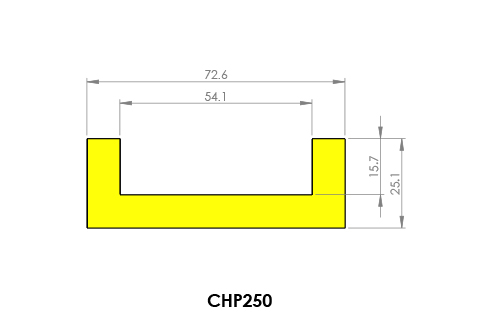

| CHP250 | 2 1/2" Standard Chanex | - | Yellow | 20ft lengths | 81X |

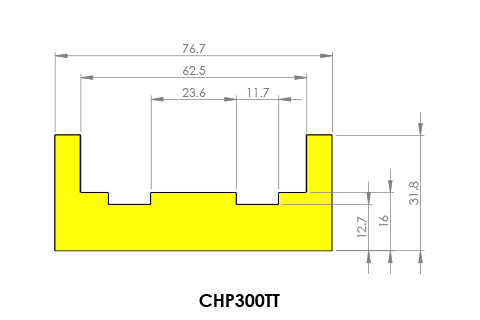

| CHP300TT | 3" Tru-Track Chanex | Yes | Yellow | 10ft lengths | 81X |

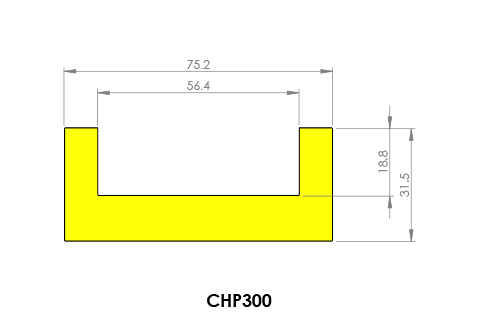

| CHP300 | 3" Standard Chanex | - | Yellow | 20ft lengths | 81X |

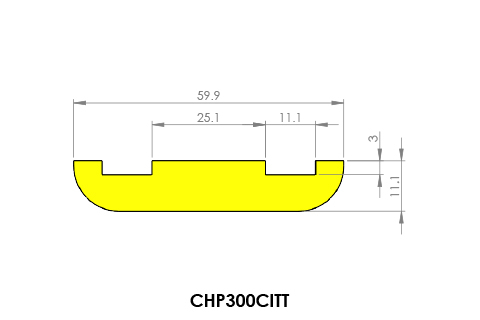

| CHP300CITT | Tru-Track Channel Insert | Yes | Yellow | 400 ft rolls | 81X |

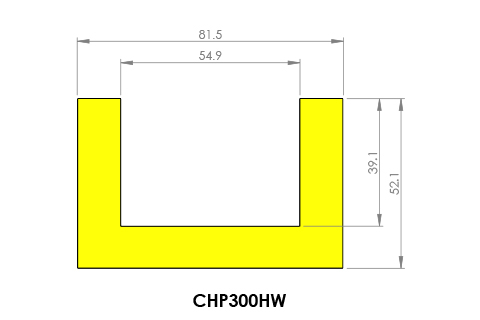

| CHP300HW | 3" High Wall Chanex | - | Yellow | 20ft lengths | 81X |

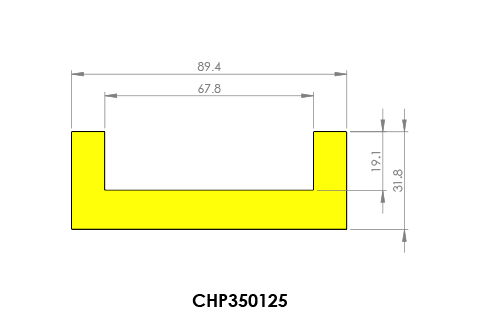

| CHP350125 | 3 1/2" Standard Chanex | - | Yellow | 20ft lengths | 81X-HD |

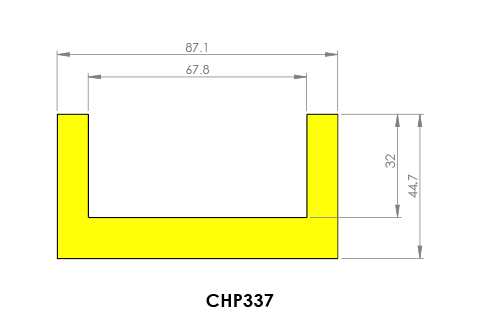

| CHP337 | 3 3/8" High Wall Chanex | - | Yellow | 20ft lengths | 81X-HD |

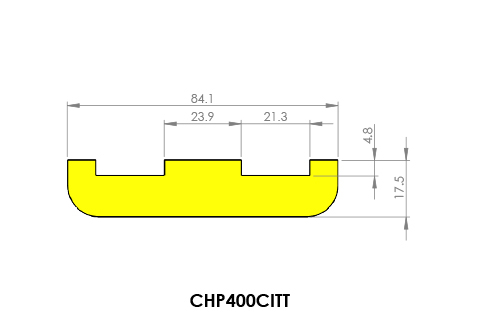

| CHP400CITT | Tru-Track Chanel Insert | Yes | Yellow | 10ft lengths | 81X, 81X-HD, H78, WH78 etc |

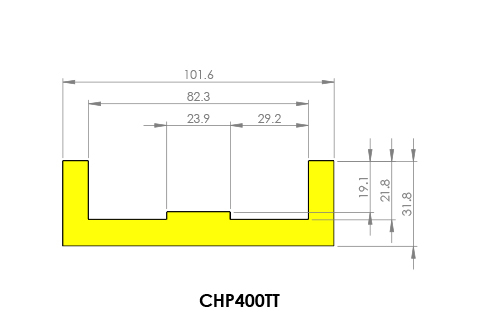

| CHP400TT | 4" Standard Chanex | Yes | Yellow | 20ft lengths | H78, H78A, WH78 etc |

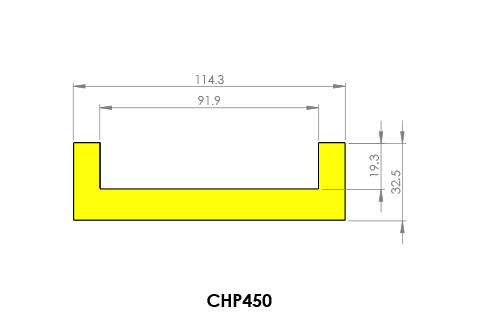

| CHP450 | 4 1/2" Heavy Duty Chanex | - | Yellow | 20ft lengths | WH78-XHD, H82 etc |
| CHP225175 | 2 1/4" High Wall | - | Yellow | 20ft lengths | Bin Slide |
| FCP25400 | Flange Cap (Slip Chanex) | - | Yellow | To Suit | Bin Sorter Knees & Walls |
| CHP650 | 6 1/2" Standard Chanex | - | White | 10ft lengths | H124, WH124 etc |
| CHP900 | 9 1/4" Standard Chanex | - | White | 10ft lengths | H132, WH132 etc |
