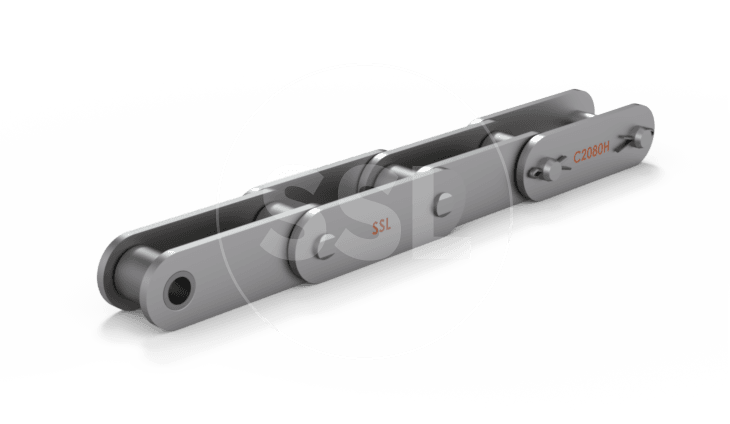

Double Pitch Roller Chains

Double pitch roller chains from CAN-AM are available in both drive series and conveyor series. They are lighter in weight and lower in cost than ANSI standard roller chains of the same strength. They are ideal for slow and moderate speed applications, particularly when shaft centres are relatively long.

Lighter weight, lower price

Power transmission & conveying

3 types available – Drive Series, Conveyor Series-Standard Roller Type, Conveyor Series-Carrier Roller Type

Download Specs

Enquire About This Product

Availability

Pitch Sizes

1″ to 4″

Strands

Simplex

Lengths

10 ft boxes or 50ft rolls

Connector Links Available

Yes

Attachments Available

Yes

Sprockets Available

Yes

Features

Double Pitch - Drive Series

Double Pitch Drive Series – light series power transmission roller chains similar to ANSI roller chains, but with side plates providing a pitch twice as great. Light in weight & lower in price.

Double Pitch - Conveyor - Standard Roller

C-2000 Double Pitch – Conveyor – Standard Roller – rollers are the same specifications as ANSI standard roller chains but with double the pitch. Side plates are straight-edged & unbeveled. Contours of roller link plates & pin link plates are identical, providing large contact areas for conveying materials.

Double Pitch - Conveyor - Carrier Roller

C2002 Double Pitch – Conveyor – Carrier Roller – rollers are the same as the C2000 Conveyor Standard chains except that the roller diameters are greater so that the rollers project beyond the chain link plates. These chains roll on flat surfaces with minimum friction.
