Drag Chain Sprockets

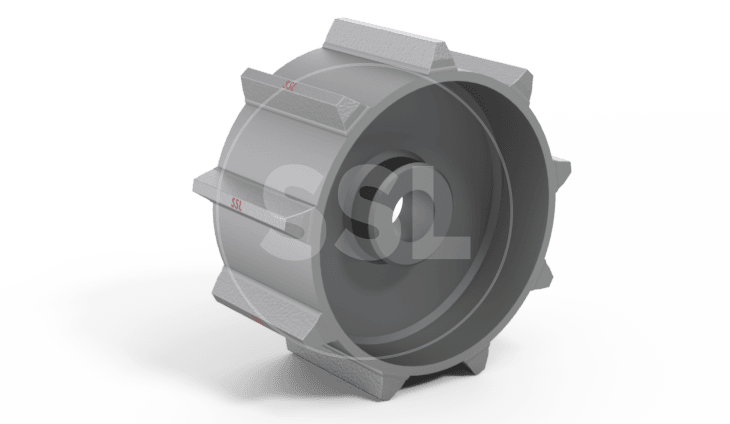

Drag chain sprockets come with CAN-AM Chains full-width cast teeth to accurately match the drag chain barrel profile. Sprockets vary in overall diameter & the number of teeth. Drag chain runs best on “drum” or “can” type sprockets with full width through hardened teeth that are welded to the drum. We also offer twin A-plate or “plate” style drag chain sprockets as an alternative design.
Full width cast steel heat treated teeth to extend chain service life
Selection of wide tooth drums or paired plate style drums
Single, double, triple or to suit your application requirements
Availability
​Tooth Count​
​6-13 or custom
Tooth Material
​Cast through hardened
​Drum Material
Mild steel or Hardox 400
​​Styles​
​Drum or plate style option
​Configuration
​Standard, flanged or multiple flanged
To Suit Chains
WD102, WD104, WD110, WD112, WD116, WD118, WD120, WD122, WD480
Features
​​Materials​
​A range of materials are available to suit the sprockets application. Mild steel, through heat treated or induction hardened plate​. Though hardened full width teeth are standard.
​​Customisation​
​All sprockets can be fabricated to suit your individual requirements. Tooth count & profiles, flanges, bosses, bores, taper locks, key ways & set screws for both drive & idler sprockets.​
​Extend Chain Life
​Our drag chain sprockets are manufactured with high quality steels & full width teeth proven to extend chain service life.
Drag Chain Sprockets Range
A range of drag chain sprockets are available and the below list is a sample of common sizes.
| Chain Number | Number of Teeth | Pitch Diameter (inches) | Max. Bore (inches) | Tooth Face (inches) |
|---|---|---|---|---|
| WD102 Pitch = 5.000" | 6 8 9 10 12 13 | 10.00 13.07 14.62 16.18 19.32 20.89 | 3 15/16 5 15/16 5 15/16 5 15/16 5 15/16 5 15/16 | 6 3/8 6 3/8 6 3/8 6 3/8 6 3/8 6 3/8 |
| WD104 Pitch = 6.000" | 8 9 10 11 | 15.68 17.54 19.42 21.30 | 4 15/16 5 15/16 5 15/16 5 15/16 | 4 1/8 4 1/8 4 1/8 4 1/8 |
| WD110 Pitch = 6.000" | 6 8 9 10 11 | 12.00 15.68 17.54 19.42 21.30 | 4 7/16 5 15/16 5 15/16 5 15/16 5 15/16 | 9 9 9 9 9 |
| WD112 Pitch = 8.000" | 7 8 9 | 18.44 20.90 23.39 | 4 15/16 5 15/16 5 15/16 | 9 9 9 |
| WD116 Pitch = 8.000" | 7 8 9 | 18.44 20.90 23.39 | 5 7/16 5 15/16 5 15/16 | 13 13 13 |
| WD118 Pitch = 8.000" | 7 8 9 | 18.44 20.90 23.39 | 5 7/16 5 15/16 5 15/16 | 13 13 13 |
| WD120 Pitch = 6.000" | 6 8 11 | 12.00 15.68 21.30 | 5 15/16 5 15/16 5 15/16 | 8 3/4 8 3/4 8 3/4 |
| WD122 Pitch = 8.000" | 6 7 9 | 16.00 18.44 23.39 | 5 7/16 5 7/16 5 7/16 | 8 3/4 8 3/4 8 3/4 |
| WD480 Pitch = 8.000" | 6 7 8 9 11 | 16.00 18.44 20.90 23.39 28.40 | 5 7/16 5 7/16 5 15/16 5 15/16 5 15/16 | 11 11 11 11 11 |
