Electromagnetic Separators

Electromagnetic Separators

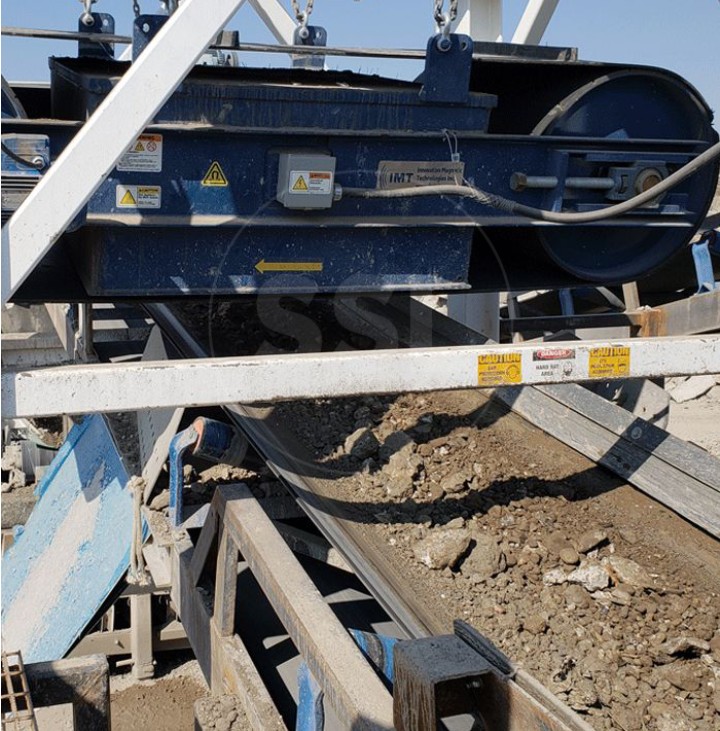

Suspended Electromagnetic Separators and Electromagnetic Cross Belt / Overband Separators provide industry with powerful, cost effective, and dependable magnetic protection for large processing / production applications for industries such as Mining, Pulp Mills, Mineral Processing, Sawmills, Biomass, Recycling and Aggregate. Built to withstand harsh environments and varying climates.
Ideal for deep burden depths
Extraction of large tramp metal within conveyed product
Ideal for high belt speed conveyors


Features

Superior magnetic strength
Low maintenance
Custom sizes available
Flexible installation options
In-stock inventory
Manual or self cleaning configuration
Standard size range 36", 42", 48” and 54" widths

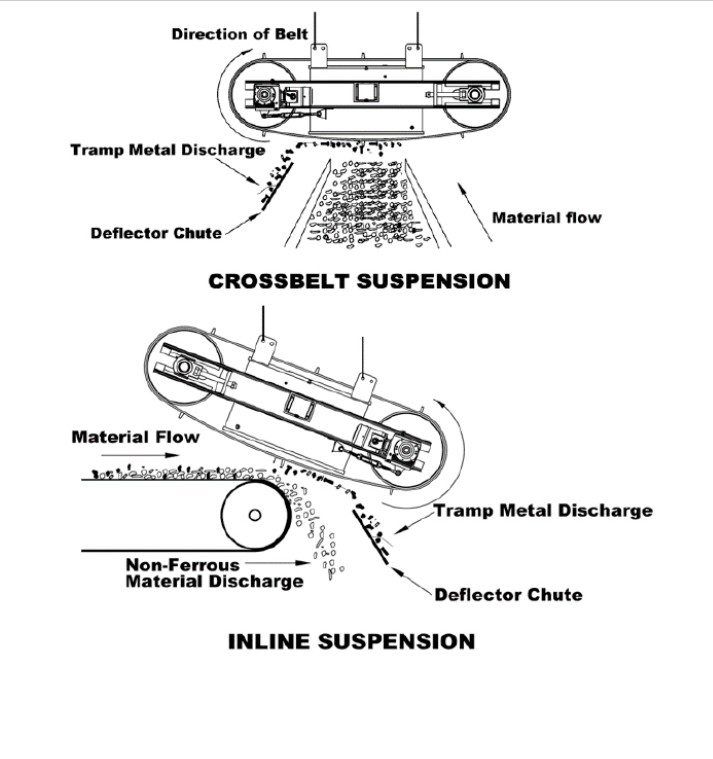

Cross belt or inline suspension


Self cleaning or manual cleaning

Manual cleaning
The magnet is shut off to release the captured tramp metal which falls from the magnet face. Typically, a trolley system is installed to move the magnet away from the conveyor so the reject ferrous material can fall directly into a bin or on the ground.

<p><strong>Manual cleaning</strong><br />
The magnet is shut off to release the captured tramp metal which falls from the magnet face. Typically, a trolley system is installed to move the magnet away from the conveyor so the reject ferrous material can fall directly into a bin or on the ground.</p>

Self cleaning

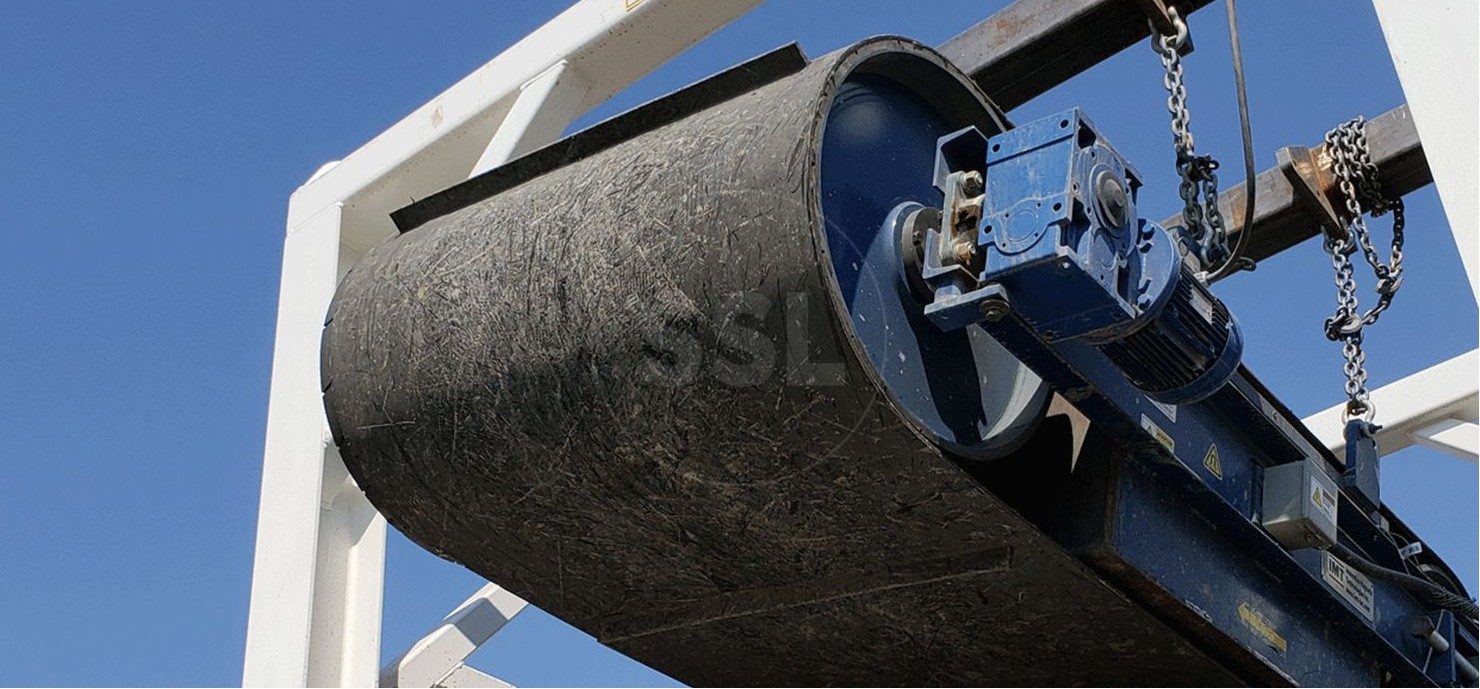

Self-cleaning electromagnetic separators feature a continuously rotating cleated belt around the unit. When ferrous tramp material is captured to the belt, the cleats swiftly move the tramp across the magnet face where it is discharged once it leaves the magnetic field.

<p><strong>Self cleaning </strong><br />
Self-cleaning electromagnetic separators feature a continuously rotating cleated belt around the unit. When ferrous tramp material is captured to the belt, the cleats swiftly move the tramp across the magnet face where it is discharged once it leaves the magnetic field.</p>


Supplier

Innovative Magnetic Technologies
Innovative Magnetic Technologies
View website
