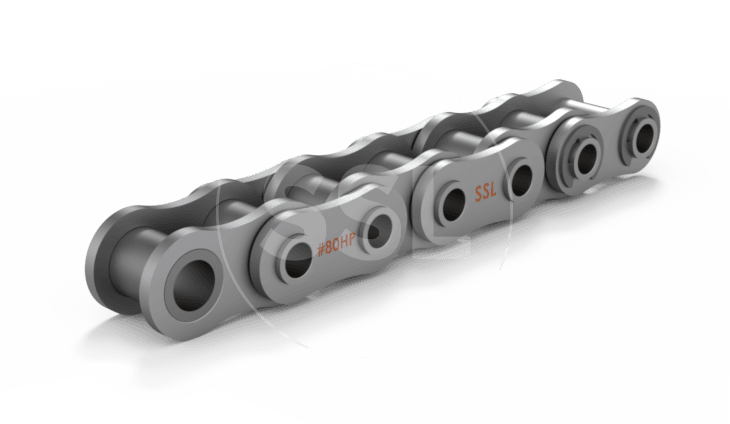

Hollow Pin Roller Chains
Hollow pin roller chains by CAN-AM are manufactured with cold-forged solid bushings ensuring the inside diameter of the bushing is completely cylindrical. The hollow pin allows for the mounting of custom attachments & virtually unlimited conveyor versatility. Available in carbon steel & stainless steel materials, also double pitch variants in conveyor or carrier series.
Mount cross rods or custom attachments with ease
Easy to change, maintain & adjust attachments in the field
Unlimited conveyor versatility
Availability
​​​Pitch Sizes​​
​1/2″ to 2″​
​Strands
​Simplex
Lengths
​​10 ft boxes or 50ft rolls​
​​​Connector Links Available​​
​​​Yes​​
Attachments Available​​
​​​Yes​​
​​​Sprockets Available​​
​​​Yes​​
Features
​ Versatility​
The hollow pin enables the joining of multiple chain strands with cross rods and the fitment of custom ​attachments enabling unlimited conveying applications. Cross rods can be inserted without dissembling the chain.
Cold-Forged Solid Bushings
Offering superior wear resistance & seamless operation, providing longer service life.
​​Standard & Double Pitch​
​​CAN-AM Hollow Pin chains are available in standard & double pitch ANSI variants. Stainless steel versions are also available. Hollow pin chains run on standard ANSI sprockets (Double pitch on standard double pitch sprockets).​ Double pitch variants come in conveyor or carrier grade.
Hollow Pin Roller Chain Range
| Pitch Size (inches) | Standard | Double Pitch Conveyor | Double Pitch Carrier |
|---|---|---|---|
| 1/2" | 40-1HP | - | - |
| 5/8" | 50-1HP | - | - |
| 3/4" | 60-1HP | - | - |
| 1" | 80-1HP | C2040-HP | C2042-HP |
| 1 1/4" | - | C2050-HP | C2052-HP |
| 1 1/2" | - | C2060-HP | C2062-HP |
| 2" | - | C2080-HP | C2082-HP |
| More hollow pin chains are available on request |
