Polyurethane PU
Polyurethane (PU) is a material that offers a combination of high tensile strength, durability & load-bearing capabilities with great abrasion resistance, high elasticity & excellent impact resistance. Available in a range of hardness’s & colours. Long term service temperature 85ºC. Polyurethane can be custom moulded to suit nearly any application.
Elastomeric material with shore hardness from 50A to 75D
Amazing toughness, flexibility and resistance to abrasion & tearing
Provides properties not available in conventional rubbers, metals or plastics
Availability

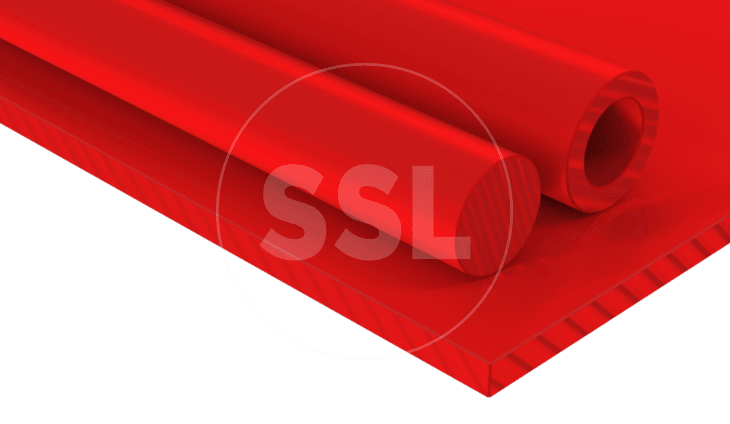

Rod
10mm to 300mm OD
Tube
6mm ID to 100mm OD
Sheet
1mm to 100mm Thick
Colours
Black, Red, Orange, Blue, Yellow.
Grade dependent or custom coloured
Modified Grades
Various hardness’s and self-lubricating grades
Cut To Size
Yes, however some grades have minimum order quantity
Features
Exceptional Properties
Polyurethane can be moulded into custom parts in a range of colours & hardness’s to suit specific applications. Polyurethane will withstand severe abuse and impact with its extreme durability & resistance to tearing & cracking. Polyurethane is hydrolytically stable & has fantastic resistance to chemicals & oils.
Hardness Scale
Polyurethane hardness is measured in Shore Hardness (A & D). It is commonly used in hardness’s from 50A for anti-rebound materials to 75D for sprockets, gears & chain lugs. A very versatile material. Custom parts can be manufactured from any polyurethane grade across the hardness spectrum.
Applications
Polyurethane is used in many industries and in applications such as rollers, scraper blades, wheels, cushioning pads, vibration reduction blocks, sprockets, gears, bump stops, concrete moulds, seals and bridge bearings. Extend product life, reduce wear, absorb vibration & reduce noise.
Long Term Service Temp
'-60°C to +85°C
Moisture Absorption
UV Stable
Compressive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
Polyurethane Range
| Product Type | Possible Applications | Available Products & Notes |
|---|---|---|
| Polyurethane 50A | Anti-Rebound Composite Ending Fences Planer Outfeeds Roll Case Transfers | Custom Parts On Request For Specific Industries |
| Polyurethane 60A | Roll Covers Speed Up Wheels Carry Over Wheels Press Rolls Infeed Wheels Shock Pads Bin Liners | Custom Parts On Request For Specific Industries |
| Polyurethane 70A | Wheel Covers Shock Pads Rolls Cases Gaskets Springs Cylinder Cushions | Custom Parts On Request For Specific Industries |
| Polyurethane 80A | Bumpers Roll Covers Abrasion Linings Slurry Liners Flexible Links Gaskets | Custom Parts On Request For Specific Industries |
| Polyurethane 90A | Roll & Wheel Covers Flight Edging Pump Lining Shock Pads Rollers and much more | Custom Parts On Request For Specific Industries |
| Polyurethane 95A | Dolly Wheels Chain Cart Wheels | Custom Parts On Request For Specific Industries |
| Polyurethane 75D | Sprockets Gears J-Hooks Bearings & Bushings Diverter Arms Chain Lugs Chain Ways and much more | Custom Parts On Request For Specific Industries |
| Polyurethane 75DM (self-lubricating) | Self-Lubricating Bearing Grade Bearings Bushings Slides Pads | Custom Parts On Request For Specific Industries |
Related Products / Services

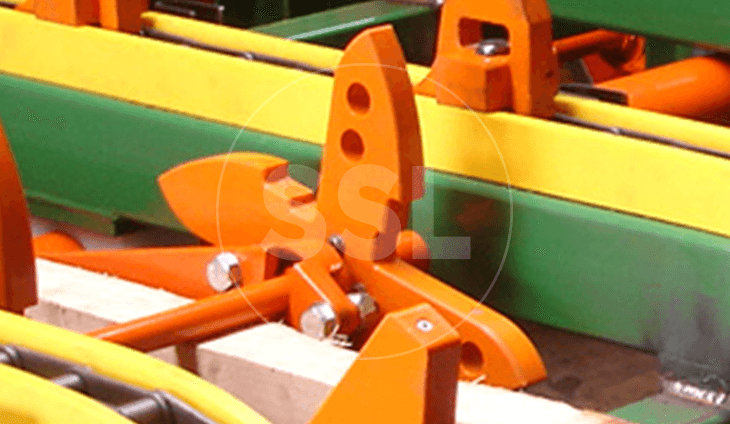

Shark Fin™ Board Turning Stars
All Shark Fin™ components are manufactured from high-impact Double Pulp Safe polyurethane to ensure your products are protected from marking, dents, grease, and oil.
Related Products / Services
Shark Fin™ Board Turning Stars
Polyurethane offers exceptional physical properties such as, toughness, flexibility and resistance to abrasion, temperature, puncture and tearing. Grades from 50A to 75D. PU combines the toughness of metal with the elasticity of rubber.
