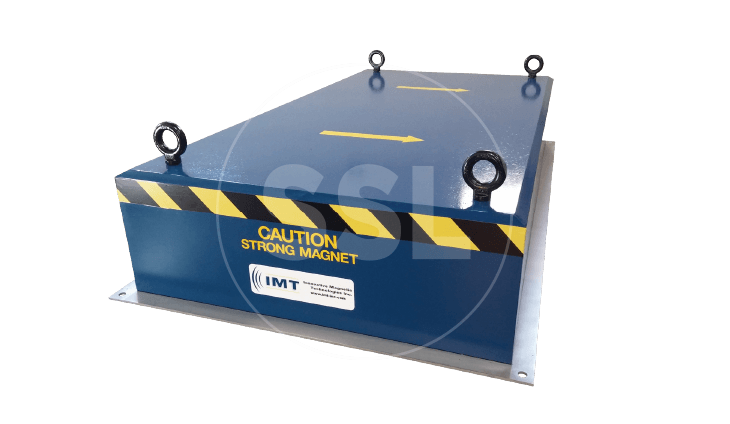

Suspended Plate Magnets

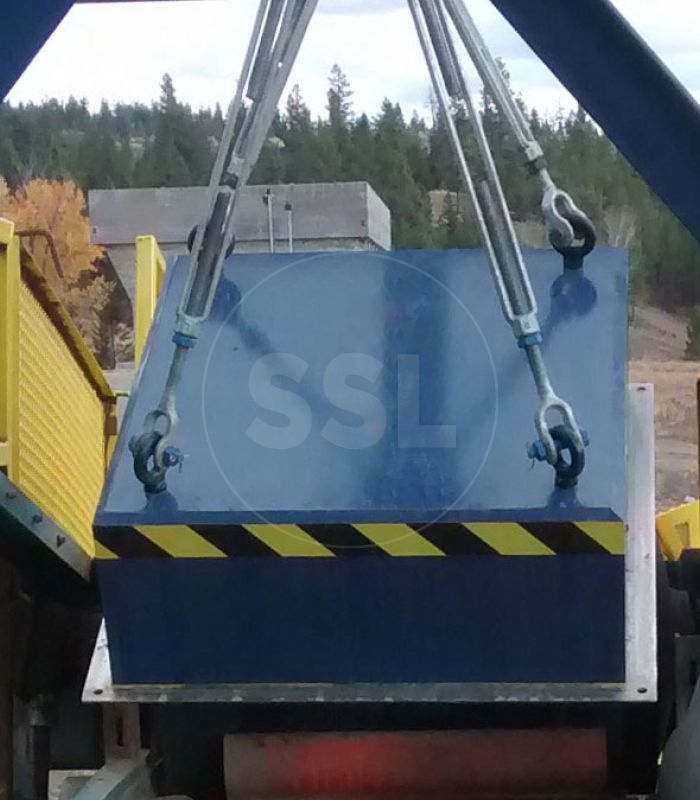

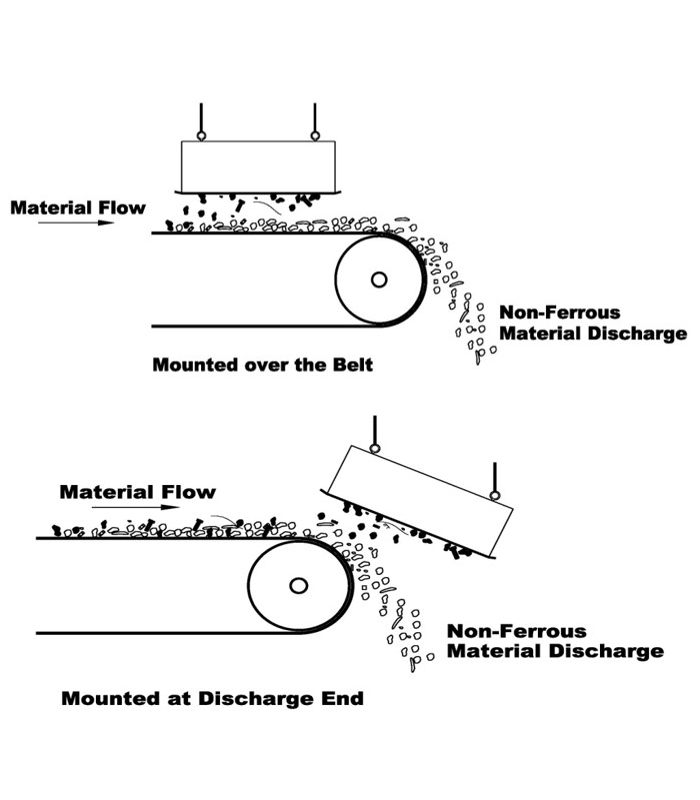

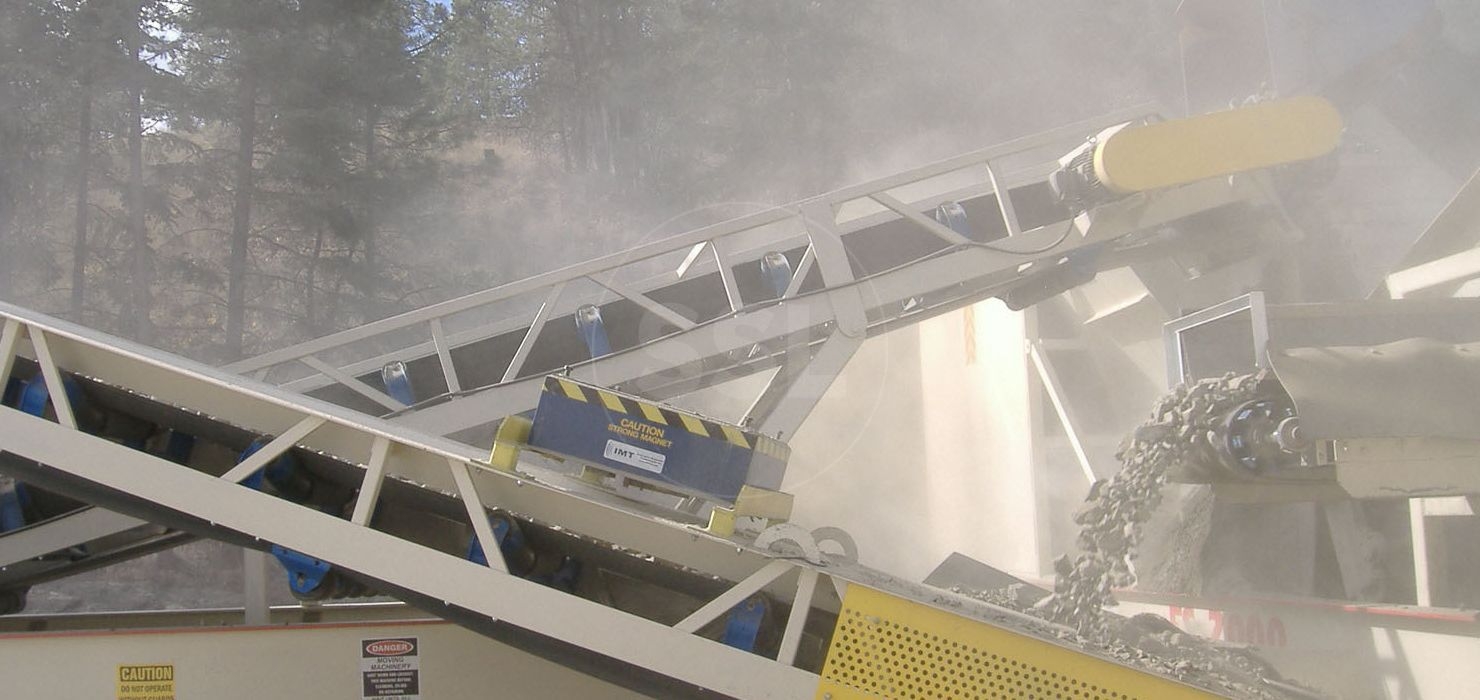

Suspended Plate Magnets are useful across many industries for extracting ferrous contaminants from production lines. They offer exceptional efficiency as they require no energy consumption and will not fail in the case of power fluctuations or shut off. These powerful magnets are typically installed either directly above a conveyor belt line or suspended over the conveyor head pulley at the discharge point.
Features
Strength in design
The IMT magnetic core design focuses the magnetic field directly into the product stream, unlike some competitor models who are prone to project around the magnet which introduces performance challenges and loss of strength.
Economical
Unsure of how much tramp iron you will encounter? The G5 series suspended plate magnet allows operations to upgrade to continuous self-cleaning crossbelt separator option within minutes.
Upgradeable
The SPM series magnet is the core of the G5 system which offers multiple upgrades such as cross-belt / inline self cleaning kits and the AMS actuated maintenance stand.
SPM Model Specifications
| Belt Width | Model | A | B | C | D | E | Weight (lbs) |
|---|---|---|---|---|---|---|---|
| 24 | SPM 2433-10 | 10.5 | 21 | 30 | 24 | 33 | 1205 |
| 30 | SPM 3033-10 | 10.5 | 27 | 30 | 30 | 33 | 1675 |
| 36 | SPM 3633-10 | 10.5 | 33 | 30 | 36 | 33 | 1870 |
| 42 | SPM 4233-10 | 10.5 | 39 | 30 | 42 | 33 | 2230 |
| 48 | SPM 4833-10 | 10.5 | 45 | 30 | 48 | 33 | 2625 |
| 54 | SPM 5433-10 | 10.5 | 51 | 30 | 54 | 33 | 2995 |
| 60 | SPM 6033-10 | 10.5 | 57 | 30 | 60 | 33 | 3335 |
