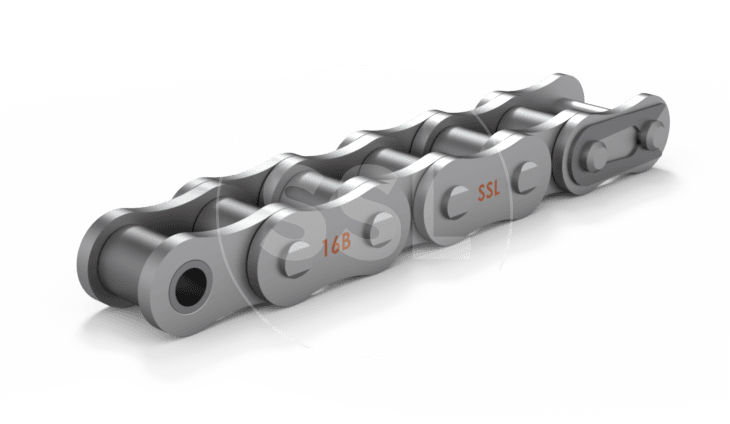

British Standard Roller Chains
CAN-AM SBR (Solid Bush & Solid Roller) British standard roller chains are designed in North America to meet the harsh demands of the wood processing industry using materials specifically selected for fatigue strength and exceptionally long service life, engineered to exceed the industry’s highest standards. Can replace any standard BS roller chain where quality is important.
- Standardised in accordance to ISO 606 "B"
- Fully interchangeable with BS 228 and DIN 8187 chains
- Replacement for any standard BS roller chain
Availability
Pitch Sizes
1/4" (04B) to 3" (48B)
Strands
Simplex, Duplex, Triplex & more
Lengths
10ft boxes & 50ft rolls
Connector Links Available
Yes
Attachments Available
Yes
Sprockets Available
Yes
Features
Solid Rollers
Solid rollers, allows for smooth rotation on the bushing, minimising the impact load as the chain engages the sprocket tooth.
Heat Treatment
Heat treating ensures consistent quality in all chain components resulting in optimum toughness and wear resistance.
Pre-Lubrication
Hot dipped in special lubricant ensuring all load bearing surfaces are protected increasing wear life of the chain.
Shot-Peened Parts
All chain rollers and link plates are shot-peened for greater fatigue strength.
Waisted Link Plates
Reduces bending stress of the link plate increasing fatigue strength.
Factory Preloading
Preloaded during assembly, minimising initial elongation of the chain.
British Standard Roller Chain Range
| Pitch Size (inches) | Simplex | Duplex | Triplex |
| 1/4" | 04B-1 | - | - |
| 5/16" | 05B-1 | - | - |
| 3/8" | 06B-1 | 06B-2 | 06B-3 |
| 1/2" | 08B-1 | 08B-2 | 08B-3 |
| 5/8" | 10B-1 | 10B-2 | 10B-3 |
| 3/4" | 12B-1 | 12B-2 | 12B-3 |
| 1" | 16B-1 | 16B-2 | 16B-3 |
| 1 1/4 | 20B-1 | 20B-2 | 20B-3 |
| 1 1/2" | 24B-1 | 24B-2 | 24B-3 |
| 1 3/4" | 28B-1 | 28B-2 | 28B-3 |
| 2" | 32B-1 | 32B-2 | 32B-3 |
| 2 1/2" | 40B-1 | 40B-2 | 40B-3 |
| 3" | 48B-1 | 48B-2 | 48B-3 |
Suppliers
ANSI and BS precision roller chain sprockets can be supplied with teeth that are flame heat treated, case hardened, induction hardened or not hardened at all. The surface finish can be plain, painted, zinc plated or black passivated.
Roller chain attachments to suit a variety of applications, available in both ANSI & BS chain specifications.
Connector links, roller links, spring clips & cotter pins. Roller chain accessories to suit simplex, duplex, triplex roller chains.
