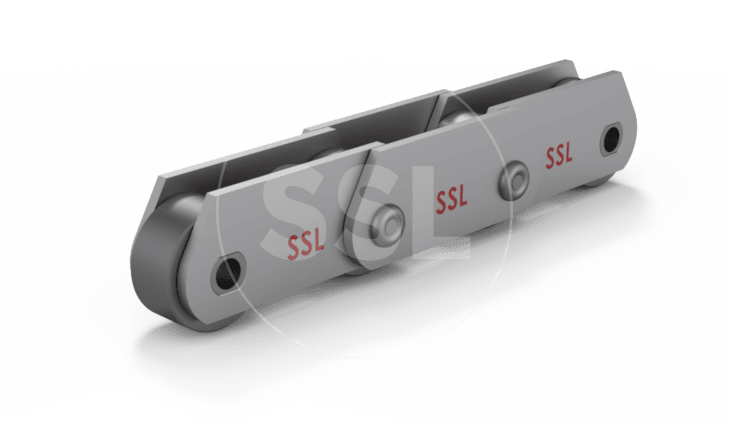

Metric Conveyor Chains
Metric conveyor chains from FB Ketju are constructed to withstand the most arduous applications. The chains characteristics are attained by surface hardened, homogenous and accurate pins and bushes with locating shoulders. The holes in the side plates are made by special precision punching resulting in a perfect cylindrical hole formation. These characteristics together with a press fit between the pins, bushes and side plates, makes the strongest joint possible.
Manufactured to international standards with inherent reliability
Constructed to withstand the most arduous applications
Surface hardened, homogeneous and accurate pins and bushes with locating shoulders
Availability
Pitch sizes
40mm to 500mm
Styles
Straight Sidebar
Lengths
5m rolls
Rivets & Conn Links Available
Yes
Attachments Available
Yes
Sprockets Available
Yes
Features
Right Chain, Right Place
FB Ketju chains are precision manufactured with a range of options available to ensure you obtain the right chain for the right place. Round riveted chains, chains with welded pins, chains with welded pins & bushes, & internationally patented profile chains.
Pitch Sizes
A huge range of pitch sizes are available in each class of metric chain. If you are looking for a strong chain with a small pitch size or a light-weight chain with a large pitch size, we have you covered. For example, the M40 range is available in 63, 80, 100 & 125mm pitch, the M900 range is available in 250, 315, 400 & 500 mm pitch.
Customisation
Options such as welded, split pin or riveted connecting pins, special lengths, plain rollers or special rollers (i.e. plastics) lubrication options & custom side plate edges are just a few to name. Your metric conveyor chain can be customised to exactly suit your requirements.
Attachments & Brackets
Standardised types of common mounting holes, brackets, bracket pins & attachments are manufactured to your dimensions. Custom requirements to your drawings are also available to suit any application.
Rollers
Options available to have no rollers & just a solid bush, small or flanged rollers.
Sprockets
We can design and fabricate a full range of sprockets to suit FB Ketju metric chains. Standard or extended tooth gaps, solid or split bolt together sprockets, self-lubricating bushes or bearings, custom bosses & key ways.
Metric Conveyor Chain Range
| Chain Number | Chain Designation | Pitch Sizes Available (mm) |
|---|---|---|
| P35 | Profile Chain | 160-200mm |
| P50 | Profile Chain | 160-200mm |
| P75 | Profile Chain | 200-250mm |
| M40 | Conveyor Chain | 63-80-100-125mm |
| M56 | Conveyor Chain | 63-80-100-125mm |
| M80 | Conveyor Chain | 80-100-125-160mm |
| M112 | Conveyor Chain | 80-100-125-160mm |
| M160 | Conveyor Chain | 100-125-160-200mm |
| M224 | Conveyor Chain | 125-160-200-250mm |
| M315 | Conveyor Chain | 160-200-250-315mm |
| M450 | Conveyor Chain | 200-250-315-400mm |
| M630 | Conveyor Chain | 250-315-400-500mm |
| M900 | Conveyor Chain | 250-315-400-500mm |
| FV40 | Conveyor Chain | 40-63-80-100mm |
| FV63 | Conveyor Chain | 63-100-125-160mm |
| FV90 | Conveyor Chain | 63-100-125-160mm |
| FV112 | Conveyor Chain | 100-125-160-200mm |
| FV140 | Conveyor Chain | 100-125-160-200mm |
| FV180 | Conveyor Chain | 125-160-200-250mm |
| FV250 | Conveyor Chain | 125-160-200-250mm |
| FV315 | Conveyor Chain | 160-200-250-315mm |
| FV400 | Conveyor Chain | 160-200-250-315mm |
| FV500 | Conveyor Chain | 160-200-250-315mm |
| FV630 | Conveyor Chain | 200-250-315-400mm |
| 3,5 | Conveyor Chain | 50-63-80-100mm |
| 5,5 | Conveyor Chain | 50-63-80-100mm |
| 8,5 | Conveyor Chain | 63-80-100-150mm |
| 12,5 | Conveyor Chain | 100-150-200mm |
| 18 | Conveyor Chain | 100-150-200-250mm |
| 24 | Conveyor Chain | 100-150-200-250mm |
| 30 | Conveyor Chain | 150-200-250mm |
| 40 | Conveyor Chain | 150-200-250mm |
| 65 | Conveyor Chain | 150-200-250mm |
