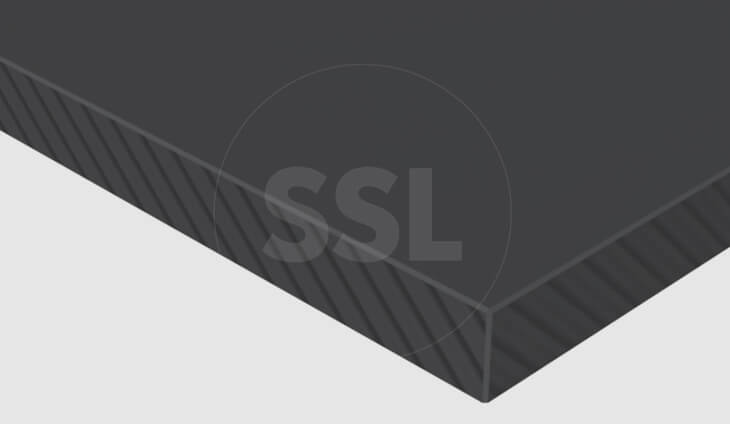

Pipe Grade PE100
Pipe grade PE100 is known for its high tensile strength, impact resistance, and long-term durability. It is designed to handle higher pressures compared to other grades of HDPE. PE100 is commonly used in the construction of pipelines for water, wastewater, and chemical systems.
Excellent chemical resistance
High resistance to stress cracking chemicals
Thermoformable and good weldability
Availability
Rod
N/A
Tube
N/A
Sheet
4 to 50mm
Colours
Black
Modified Grades
No
Cut to size
Yes
Features
Unique to PE100
Pipe Grade PE100 has a higher molecular weight compared to standard HDPE, offering enhanced performance in various piping and tank applications. This material is UV-stabilized, making it suitable for challenging outdoor environments and is resistant to many chemicals.
Options
Pipe grade PE100 Pressure Vessel Quality (DIBt) is typically black, colours on request. Standard sheet size is 1500mm x 3000mm. Thickness from 4mm. Larger sheets are available.
Applications
Pipe Grade PE100 is versatile and suitable for a range of applications, including water and chemical tanks, manhole lids and bases, pipe reducers, pipe flanges, end caps, flange adapters, lifting lugs, trenches and sumps to name a few.
Long Term Service Temp
-50°C to + 80°C
Moisture Absorption
UV Stable
Compressive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
Pipe Grade PE100
| PRODUCT TYPE | SHEET SIZE | AVAILABLE THICKNESSES *SOME ITEMS ARE MANUFACTURED & IMPORTED ON REQUEST |
|---|---|---|
| PE100 Sheet Black | 1500mm x 3000mm (stock item) | 4mm to 50mm |
| PE100 Sheet Black | 1000mm x 2000mm | 4mm to 50mm |
| PE100 Sheet Black | 2000mm x 4000mm | 4mm to 50mm |
What to know more?
Check out our blog post on HDPE sheet uses.
