PPS Plastic
PPS plastic (polyphenylen sulfide) is a thermoplastic polymer offering a range of properties including exceptional chemical resistance, high mechanical strength even at temperatures over 200°C & good dimensional stability with low moisture absorption. No known solvents dissolve TECATRON PPS plastic at temperatures below 200°C. Available in reinforced grades.
Exceptional chemical, high temperature resistance & thermal stability
Excellent mechanical properties & dimensional stability
Inherently flame retardant without additional additives

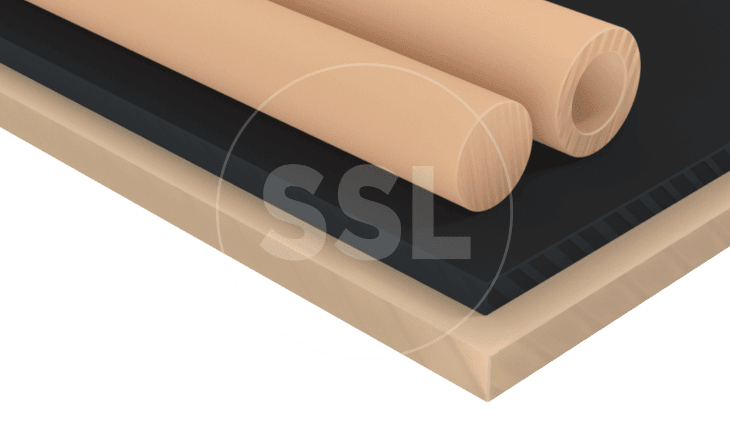

Availability
Rod
10mm to 60mm OD
Tube
On Request
Sheet
10mm to 70mm Thick
Colours
Beige, Black
Modified Grades
Yes
Cut To Size
No – minimum order quantities apply
Features
Resistance
TECATRON PPS plastic offers long-term heat resistance even at continuous temperatures of 200°C & excellent resistance to moisture absorption, offering strength even in hot water applications. TECATRON PPS has the second highest rating for chemical resistance to acid, alkalis & solvents after fluoropolymers.
Additives & Modifiers
TECATRON PPS plastic is available in modified grades to change the physical & mechanical properties such as glass filled to increase rigidity & strength, a combination of PTFE, graphite & carbon additives for wear & bearing applications. High purity & modified grades available for the semiconductor industry.
Applications
Compressor & pump parts, high pressure liquid components, electronic sockets, connectors & fixtures, valves, bushings, nozzles, rollers, surgical instruments, fuel & brake systems, chemical mechanical planarisation applications.
Long Term Service Temp
'-25°C to +230°C
Moisture Absorption
UV Stable
Compressive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
PPS Plastic Range
| Product Type | Industry Usage | Available Products & Notes |
|---|---|---|
| TECATRON Natural PPS | Electronics, Aircraft & Aerospace, Electronics, Vacuum, Mechanical, Oil & Gas, Chemical technologies | Natural Rod & Sheet Beige Some items are manufactured & imported on request |
| TECATRON GF40 Natural PPS | Aircraft & Aerospace, Mechanical, Oil & Gas, Chemical, Energy, technologies | 40% Glass Fibre filled Rod, & Sheet Beige Some items are manufactured & imported on request |
| TECATRON GF40 Black PPS | Mechanical, Energy, Oil & Gas, Chemical, Aircraft & Aerospace technologies | 40% Glass Fibre filled Rod, & Sheet Black Some items are manufactured & imported on request |
| TECATRON PVX Black PPS | Mechanical, Vacuum, Oil & Gas, Aircraft & Aerospace, Automotive technologies. Bearing & wear applications | 40% Glass Fibre filled Rod, & Sheet Beige Some items are manufactured & imported on request |
| TECATRON CM CF15 GR10 TF10 Black (XP-83) PPS | Oil & Gas industries Sliding & wear applications | 10% Carbon Fibre, 10% Graphite, 10% PTFE filled Tube Black Imported on request |
| TECATRON CM GF40 Natural (XP-64) PPS | Oil & Gas industries | 40% Glass Fibre filled Tube Beige Imported on request |
| TECATRON SE Natural PPS | Semiconductor industries | Natural Tube Beige Some items are manufactured & imported on request |
| TECATRON SX Natural | Semiconductor industries | Natural Tube Beige Some items are manufactured & imported on request |
