PEI
TECAPEI PEI (polyetherimide) standard grade offers exceptional electrical, thermal & mechanical properties with fillers available such as glass fibers increasing tensile strength & dimensional stability. Suitable for environments requiring repetitive steam sterilisation & resistance from chlorine/caustic/acid chemicals. Wide service temperature range between -50°C to 170°C.
- Excellent chemical & UV resistance, inherently flame retardant
- High heat resistance, strength & electrical insulation
- Stable over a wide range of temperatures

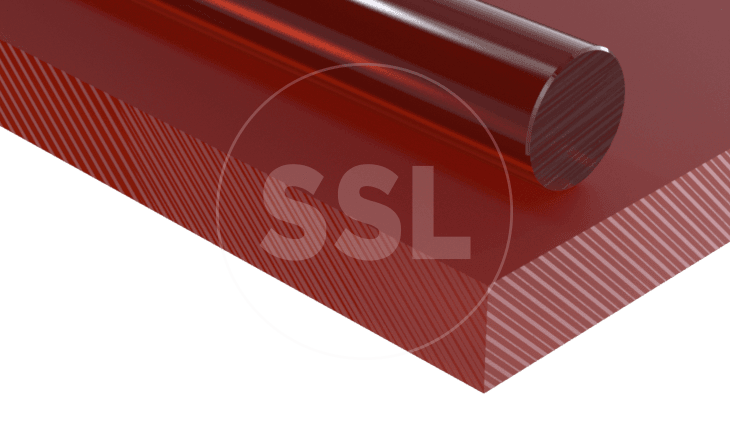

Availability
Rod
8mm to 150mm OD
Tube
N/A
Sheet
10mm to 80mm Thick
Colours
Amber
Modified Grades
Yes
Cut To Size
No - minimum order quantities apply
Features
Food, Medical, Aerospace Grades
TECAPEI PEI Natural grade is FDA certified for food contact. TECAPEI PEI Natural & TECAPEI PEI GF30 (glass filled) is FAR 25.853 approved for aerospace applications. TECAPEI PEI is widely used in electronics, automotive, mechanical, medical & vacuum technologies.
Additives & Modifiers
TECAPEI PEI GF30 is available reinforced with 30% glass fibres which offers higher rigidity, increased mechanical strength & additionally providing dimensional stability. TECAPEI PEI GF30 is used for components subject to high static loads in constant high temperature applications.
Applications
Typically used in electrical, automotive, aerospace applications such as: circuit breaker housings, non-combustible connectors, jet engine components, aircraft & automotive components, coils & fuses, heat exchangers & medical components.
TECAPEI PEI Properties
Long Term Service Temp
-50°C to +170°C
Moisture Absorption
UV Stable
Compressive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
Product Range
| Product Type | Industry Usage | Available Products & Notes |
| TECAPEI PEI Natural | Food, Electronics, Medical, Aerospace, Automotive, Vacuum Technologies | Natural Rod, & Sheet Amber Some items are manufactured & imported on request |
| TECAPEI PEI GF30 Natural | Electronics, Mechanical, Automotive, Vacuum Technologies | 30% Glass Filled Rod, & Sheet Amber Some items are manufactured & imported on request |
