Refuse Flight Chains
​Refuse flight chains are generally used for long sprocket centre distance conveying of refuse products in non-abrasive environments such as sawdust & wood chip conveyors. The chain flights can be sleeved with UHMW-PE, metal filled UHMW-PE or pulp friendly polyurethane for the Kraft process. Available in standard box section or custom manufactured.
Light-weight & self-lubricating flights, providing greater efficiency & less power consumption
Press fit for ease of installation & replacement
Extend chain & attachment service life
Availability
​Chain Types
To suit 6.050″ pitch welded steel conveyor chain attachments
​Flight Sleeve Profile
Available in 4″ x 4″ box or 2″ x 4.5″ flat bar profiles
​Materials
​Virgin or metal filled UHMW-PE or polyurethane
Features
Flight Sleeves

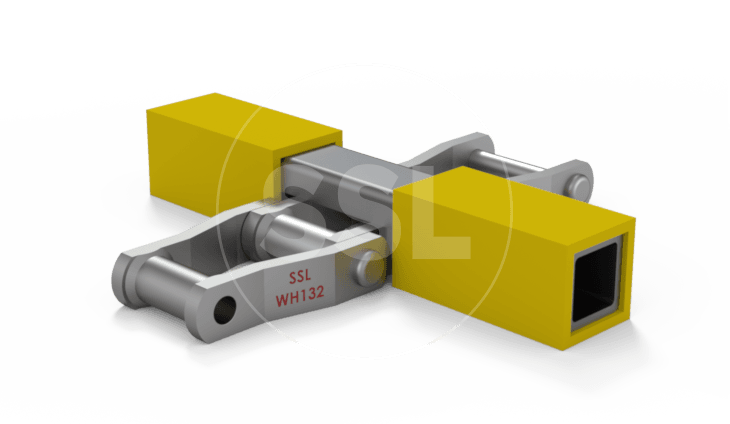

​Two sleeve sizes are available off the shelf in virgin UHMW-PE: box section 4″ x 4″ & flat bar 2″ x 4.5″. These snugly press fit over the attachment profile. Available in 10ft lengths, we will cut to your specific requirements.
Chain Selection
Refuse flights are generally fitted to 6.050″ pitch WH132 or WH157 conveyor chains. We recommend CAN-AM conveyor chains for these applications as they have been industry proven over the last 60 years in the harshest operating conditions. Our stocked chains by default are fully heat treated with heat treated rivets.
​Reduce Costs
The flight sleeves offer a range of cost savings that can be taken advantage of such as being able to design conveyors with single chain strands with large flight attachments compared to double strand designs. The attachment sleeves due to the low co-efficient of friction extends chain & conveyor bed life & reduces noise.
​UHMW-PE Virgin
Low co-efficient of friction. Self-lubricating, require less power to drive than steel flights. Reduced conveyor wear. Reduced noise.
​UHMW-PE Metal Filled
High specific gravity (sinks), activates metal detectors, UV stabilised. Can be separated from wood pulp in solution. Retains all other virgin UHMW-PE properties.
​Polyurethane 75D
​High specific gravity (sinks)​. Designed to replace UHMW-PE found in pulp mills. Dissolves in the Kraft process. Good wear characteristics. Impact & abrasion resistant.
Refuse Flight Chains Range
| Pitch Size (inches) | Offset Sidebar | Straight Sidebar | XHD Offset Sidebar | XHD Straight Sidebar |
|---|---|---|---|---|
| 6.050" | WR132 WH132 WR150 WH150 WR155 WH155 WR157 WH157 | WRC132 WHC132 WRC150 WHC150 WRC157 WHC157 | WR106XHD WH106XHD WR132XHD WH132XHD | WRC110XHD WHC110XHD WRC132XHD WHC132XHD |
| 6.125" | WR159 WH159 WR200 WH200 | - | - | - |
Flight Selection
| Flight Profile | Outside Dimensions | Inside Dimensions | Wall Thickness | Lengths | Materials |
|---|---|---|---|---|---|
| Box | 4" wide x 4" high | 3" wide x 3" wide | 1/2" | To suit | Virgin UHMW-PE Metal Filled UHMW-PE Polyurethane 75D |
| Flatbar | 4.5" wide x 2" high | 3.5" wide x 1" high | 1/2" | To suit | Virgin UHMW-PE Metal Filled UHMW-PE Polyurethane 75D |
