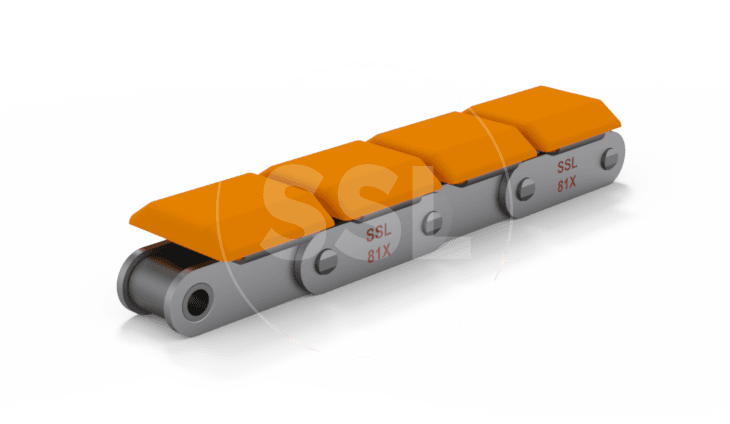

Roof Top Chains
A large range of CAN-AM roof top chains in welded steel, cast malleable or a combination of both are available to suit your application requirements in both crank link or straight side bar styles. Numerous industry standard roof top profiles are available in universal top, camel back & roll top in a range of materials. Custom made profiles available on request.
Quality CAN-AM chains with standard or custom roof top profiles
Protect your product from marking with engineering plastics or rubber
A wide range of shapes & profiles
Availability
​​Pitch Size​
​1.63″ to 4.063″​
Roof Top Styles
Universal, Camel Back, Roll Top, UniTop
Lengths
​10ft rolls
Spare Roof Tops Available
​Yes
​​Rivets & Conn Links Available​​​
​Yes
​Sprockets Available
​Yes
Features
​Chain Selection
​A choice of quality CAN-AM Roof Top welded steel chains in standard & extra heavy duty variants, cast or combination types. Heat treated components. Straight sidebars or cranked. See the chain range at the bottom of this page.
​Roof Top Styles
​A wide range of roof top profiles to suit your application. Industry standard profiles such as universal roof top, unitop, & A/B profiles. Nylon rollers are also available. We can custom manufactured & fit to any requirement. Materials such as steel, malleable iron & engineering plastics such as UHMWPE, Acetal & Nylon.
Applications
Roof tops chains are commonly used in lumber, packing & transfer conveyors, basically anywhere where products must be protected from chain damage. The roof top protects the product from damage from the chain side plates and reduces sliding friction.
Welded Steel Options
​CAN-AM Welded Steel chains provide an economical & superior method for conveying most materials. Standard with heat treated rivets with options for heat treatments & induction hardening. Due to being steel that is easily welded, fitting roof tops & attachments is simple.
​Malleable Options
CAN-AM Malleable Cast chains are available in a range of sizes and styles. Normally larger in size than their welded steel chains for comparable load ratings. Cast rooftop chains can sometimes withstand more vertical impact than welded steel rooftop chain.
​Combination Options
CAN-AM ​Combination chains offer a mixture of both welded steel and malleable cast. They consist of heat treated malleable iron centre links with carbon steel side bars. Ideal for fitting roof tops or attachments. Combination chains are available riveted or pin & cotter construction.
Roof Top Chain Range
| Pitch Size (inches) | Welded Steel Universal Top | Welded Steel Nylon Roll Top | Trimmer Chain Roof Top | Trimmer Chain Orange PE Caps | Trimmer Chain Rubber Top | Malleable Roof Top | Malleable Camel Back | Combination Roof Top | Combination Camel Back | Combination Uni Top |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.630" | - | - | - | - | - | - | - | C55A | C55B | C55D |
| 2.609" | WH-78U | WR-78RTN WRC-78RTN | 81X-RT 81X-ART | 81X-UP WR-78UP | 81X Grey 75A 81X Blue 80A WH-78 Grey 75A WH-78 Blue 80A | H78A | H78B | - | - | - |
| 2.636" | WH-78XHDU | - | - | - | - | - | - | - | - | - |
| 3.075" | WH-82U WH-82XHDU | - | - | - | - | - | - | - | - | - |
| 4.000" | WH-78-4U WH-130/8U WH-124U | - | - | - | - | H130 | H138 | - | - | - |
| 4.063" | WH-124XHDU | - | - | - | - | - | - | - | - | |
| Custom profiles available |
