Vibratory Magnetic Separators

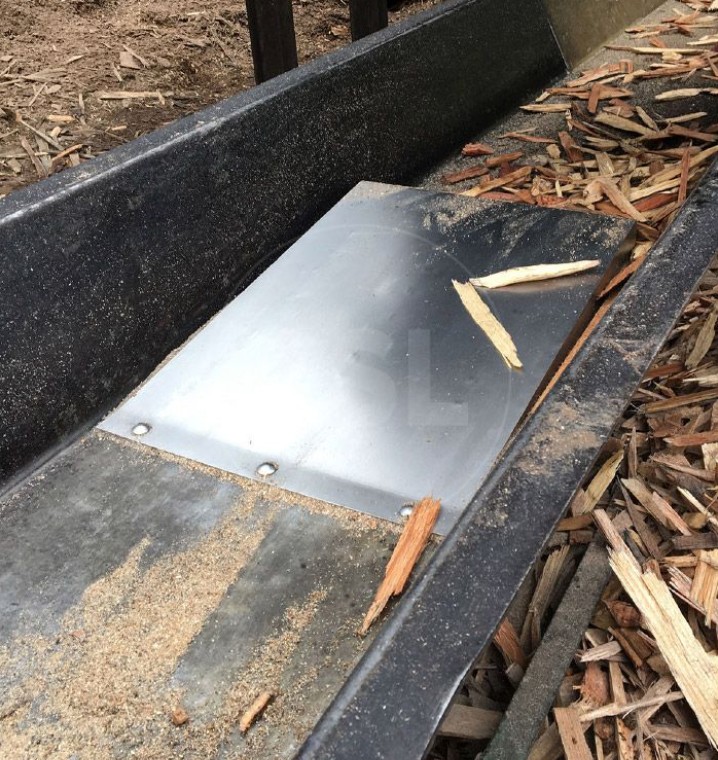

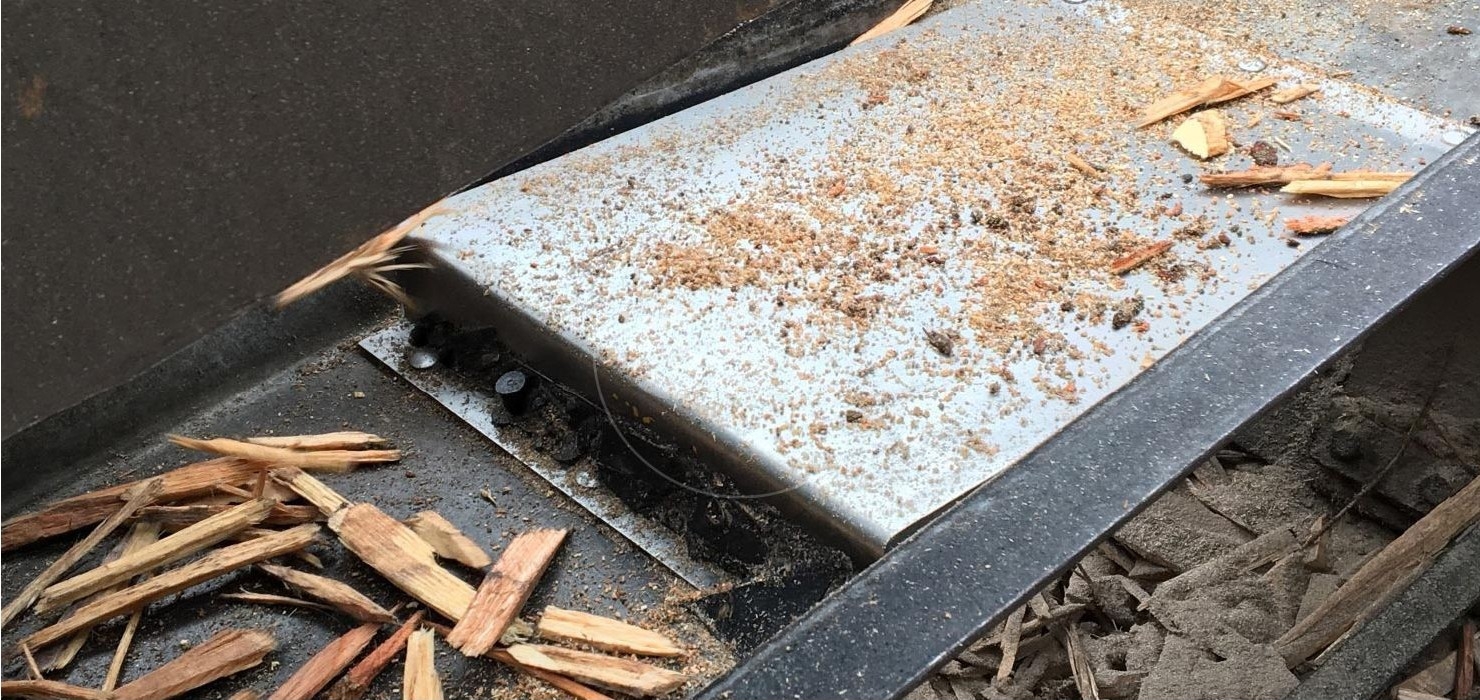

This simple product is easy to install and is customisable to suit the needs of any application. The vibratory magnetic separator is the evolution of tramp metal separation for vibratory conveyors and gravity fed chute applications. The IMT VIBRA-SEP reduces damage to expensive processing equipment that is susceptible to tramp metal contaminants. Increase up time, reduce maintenance costs and have metal free product.
Capture tramp metal

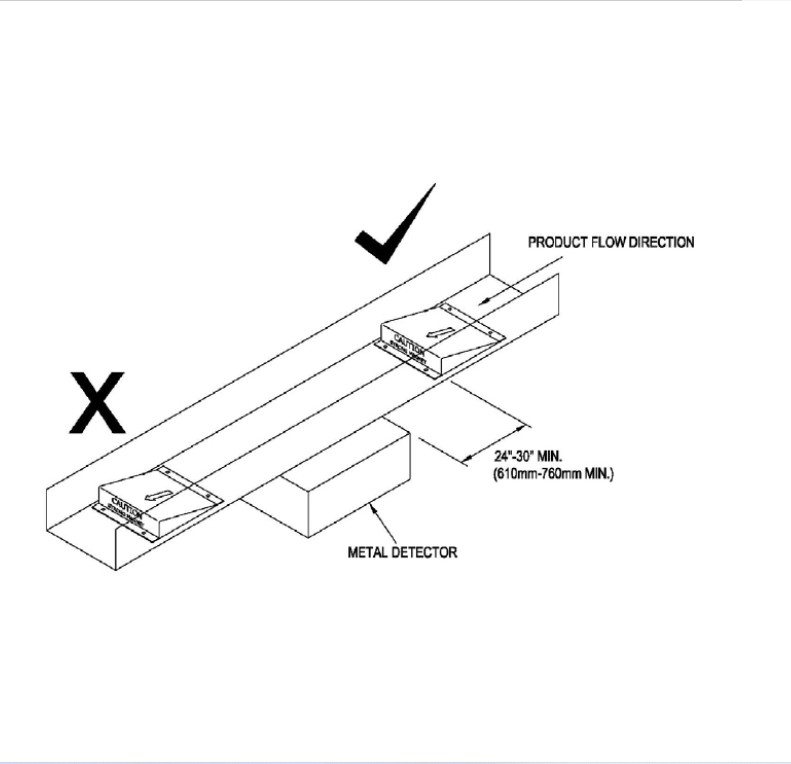

Reduce metal detector tripping
High performance - budget friendly
Features
Superior magnetic strength
Custom sizes available
Flexible installation options
In-stock inventory

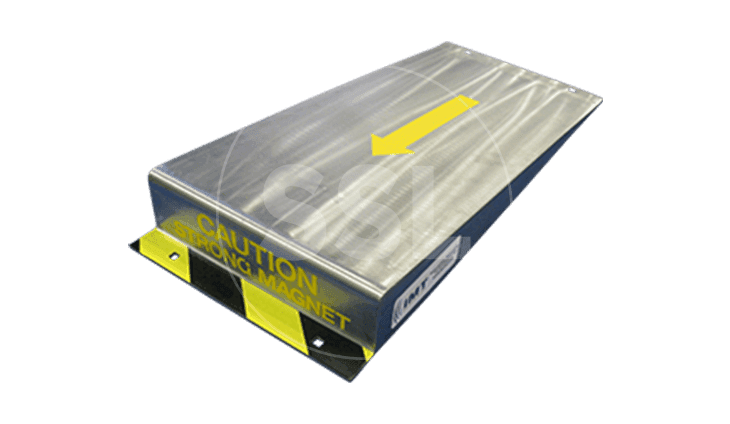

VIBRA-SEP Standard models
| Trough width | Model | Part Number | "W" | Weight (lbs) |
|---|---|---|---|---|
| 12" | VIBRA SEP 12 | 108-001202 | 11.5" | 41 |
| 16" | VIBRA SEP 16 | 108-001602 | 15.5" | 53 |
| 17" | VIBRA SEP 17 | 108-001702 | 16.5" | 58 |
| 18" | VIBRA SEP 18 | 108-001802 | 17.5" | 60 |
| 20" | VIBRA SEP 20 | 108-002002 | 19.5" | 66 |
| 22" | VIBRA SEP 22 | 108-002202 | 21.5" | 72 |
| 24" | VIBRA SEP 24 | 108-002402 | 23.5" | 78 |
| 30" | VIBRA SEP 30 | 108-003002 | 29.5" | 97 |
| 36" | VIBRA SEP 36 | 108-003602 | 35.5" | 115 |
