Chain Guides Extend Chain Service Life

Extend the life of your chain and minimise expensive downtime.

Our extensive range of chain guides are manufactured in North America from UHMWPE polymer that offers an extremely low coefficient of friction, meaning your expensive chain is sliding easily across its surface, minimising chain wear.

Low-cost chain guide profiles such as our Chanex® brand enables smooth chain flow and protects the chain from metal on metal contact. This is proven to extend chain life.

There are a wide range of benefits gained from using Chanex® Chain Guides such as:

  • Lower cost of conveyor construction, as the chain guides are simply bolted or welded into place.
  • Reduced power consumption due to less friction.
  • Quieter site operation due to less chain squeal.
  • Reduced maintenance costs due to the quick turn-around of fitting replacements.
  • Will outlast steel wear strips and will not rust.

With a range of different styles available, we cover the most common conveyor chain types used in New Zealand.

Our range will suit C2060 double pitch, straight sidebar chains.

A wide range of 2.609″ pitch chains such as 81X, 81XHD, WR/WH78, H78, including these chains in rooftop variants.

We even supply our UHMWPE chain guides to suit larger pitch chains such as 6″ pitch WH132 and 4″ pitch WH124.

If we don’t have it on the shelf, we can custom design and CNC machine your chain guide to suit your exact requirements, with quick turn-around times.

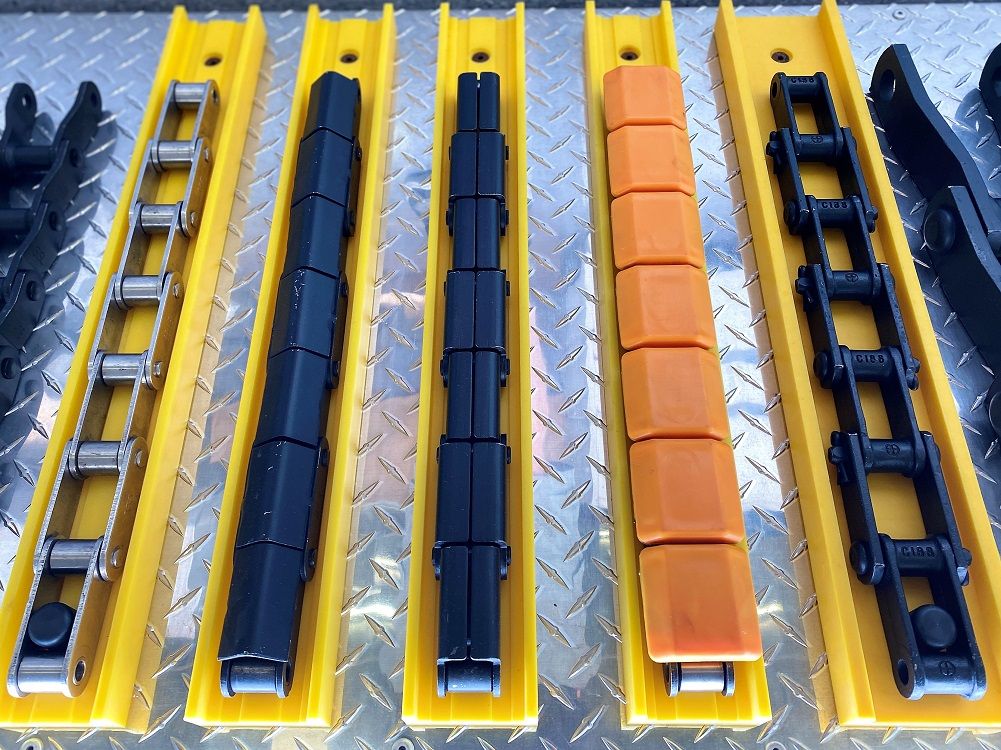

chain guides uhmwpe
uhmwpe chain guide

Tru-Track Options

Our Chanex® Tru-Track chain guides options are very popular.

Tru-Track has the chain profile formed into the chain guide that perfectly matches the chain.

No longer have chains tracking sideways. Tru-Track keeps the chain in its intended spot which optimally supports the chain barrel or roller and the side plates at the same time.

Look at the range of UHMWPE Chain Guides

chain guide
plastic chain guide nz
chain guides
chanex chain guide plastic nz
uhmwpe chain guide nz
chanex uhmw chain guide
chain guide nz
conveyor chain guides
chain guides nz supplier
chain guides nz
chain guides
chanex chain guides
H78A chain guide
heavy duty chain guide nz uhmwpe
ProductDescriptionTo Suit Chain

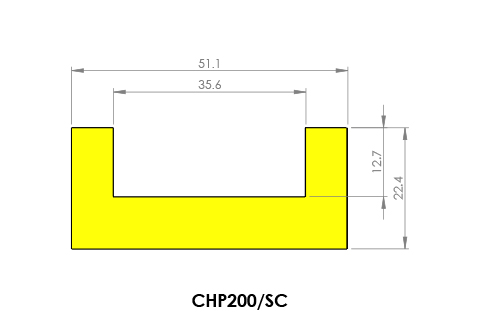

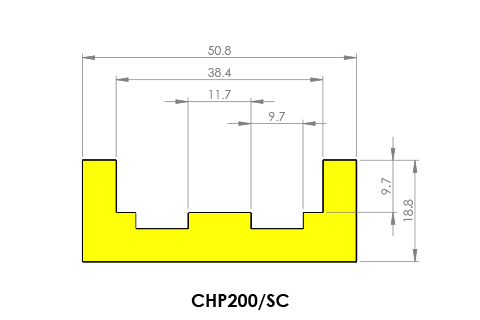

CHP200/SC2" Scanner Transfer ChanexC2060

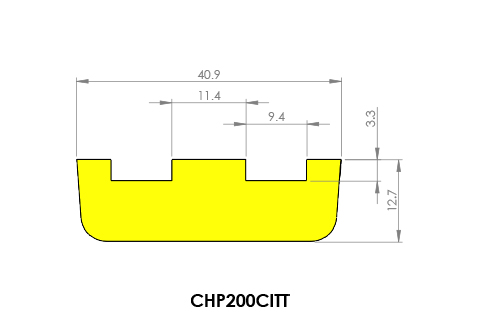

CHP200CITT2" Channel InsertC2060
CHP2002" Standard ChanexRC80, C2060, C2080

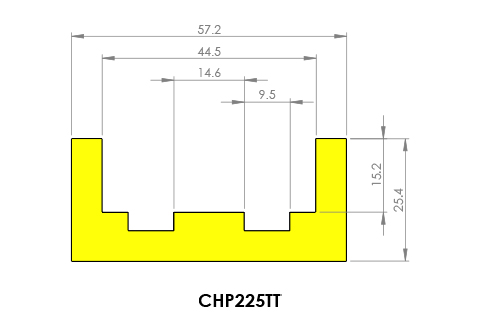

CHP225TT2 1/4" ChanexC2080, C2080H
CHP50250-B2 1/2" Low Wall ChanexVarious

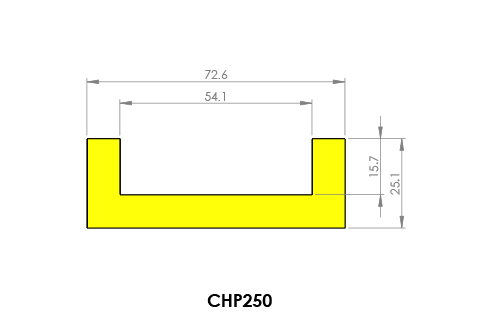

CHP2502 1/2" Standard Chanex81X

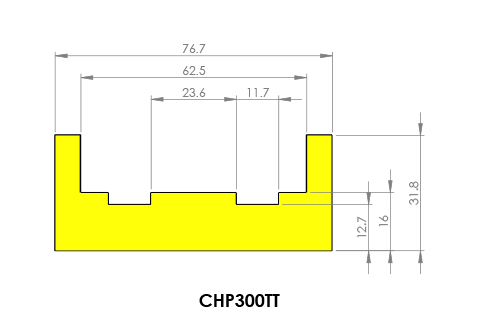

CHP300TT3" Tru-Track Chanex81X

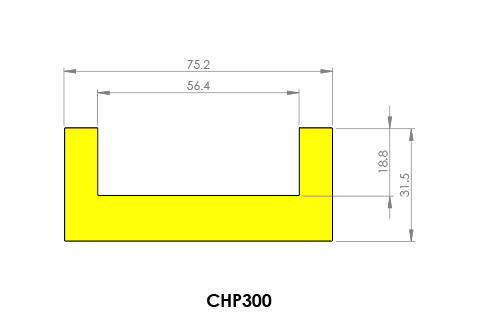

CHP3003" Standard Chanex 81X
CHP300CITTTru-Track Channel Insert81X
CHP300HW3" High Wall Chanex81X

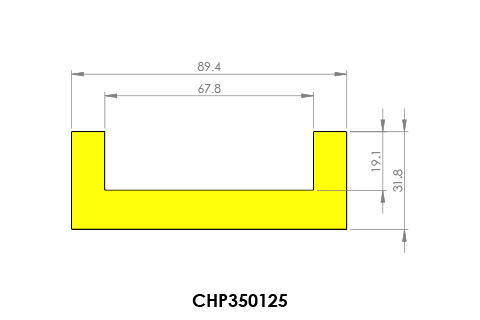

CHP3501253 1/2" Standard Chanex81X-HD
CHP3373 3/8" High Wall Chanex81X-HD

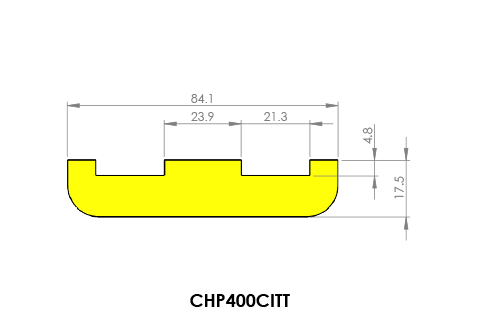

CHP400CITTTru-Track Chanel Insert81X, 81X-HD, H78, WH78 etc

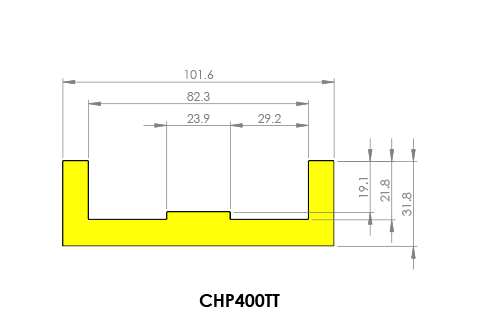

CHP400TT4" Standard ChanexH78, H78A, WH78 etc

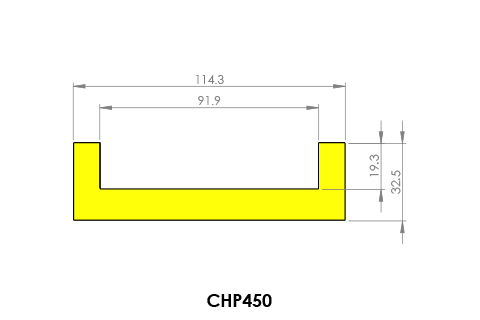

CHP4504 1/2" Heavy Duty ChanexWH78-XHD, H82 etc
CHP2251752 1/4" High WallBin Slide
FCP25400Flange Cap (Slip Chanex)Bin Sorter Knees & Walls
CHP6506 1/2" Standard ChanexH124, WH124 etc
CHP9009 1/4" Standard ChanexH132, WH132 etc
