Acrylic PMMA – Perspex®
Acrylic PMMA or as it commonly known, Perspex®, is a rigid material known for its fantastic transparency. Available in a variety of different colours and tints, acrylic is often used in displays, screens & personal hygiene guards. Acrylic has a high mechanical strength & surface hardness, making it resistant to scratching & able to be polished.
High mechanical strength & surface hardness
Excellent weatherability & UV resistance
Resistant to most solvents

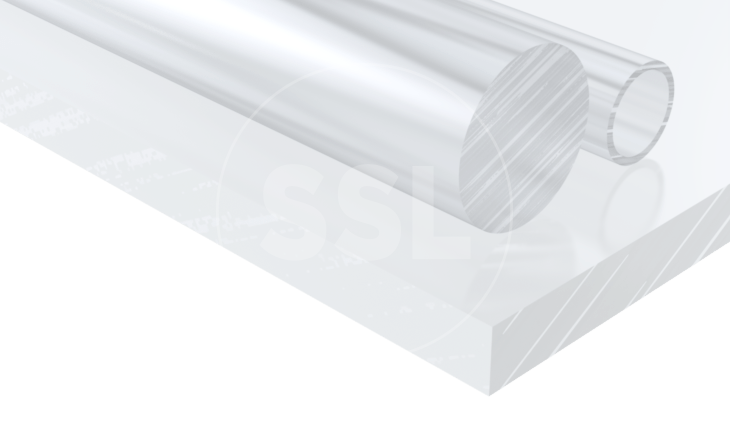

Availability
Rod
5mm to 200mm OD
Tube
4mm ID to 250mm OD
Sheet
2mm to 50mm Thick
Colours
Transparent, Translucent, Opaque
Modified Grades
No
Cut To Size
Yes, however some grades have minimum order quantity
Features
Material Properties
Acrylic has good thermal stability, high mechanical strength & rigidity. With low water absorption, excellent weather resistance & UV stability, it is a very versatile material. It can be easily machined & polished meaning marks & surface haze from machining can be polished out to maintain the transparency it is known for.
Acrylic vs Polycarbonate (PC)
Acrylic & PC are often confused due to their similar appearance but do have some key differences. Acrylic has 17x the impact resistance of glass, PC has 250x. Acrylic can be polished to restore clarity, whereas PC cannot. Acrylic has a temperature range of -32 ºC to 80 ºC, PC can withstand temperatures up to 120ºC. Acrylic is more cost effective than PC.
Applications
Acrylic’s transparency, strength & rigidity make it a fantastic material choice in a wide range of applications. Acrylic can be used in a variety of ways such as brochure holders, a glazing alternative or glass replacement, signage, display cases, sneeze guards, flanges & sight glasses.
Long Term Service Temp
'-32°C to +80°C
Moisture Absorption
UV Stable
Compressive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
Acrylic PMMA Range
| Product Type | Industry Applications | Available Products & Notes |
|---|---|---|
| Acrylic PMMA | Sight Glasses Clear Engineering Parts Product Prototypes Transparent Tanks Protective Glazing Outdoor Signage Boat Screens Point of Sale Displays Medical Applications Winery Pipes Industrial Applications | Rod, Tube & Sheet |
