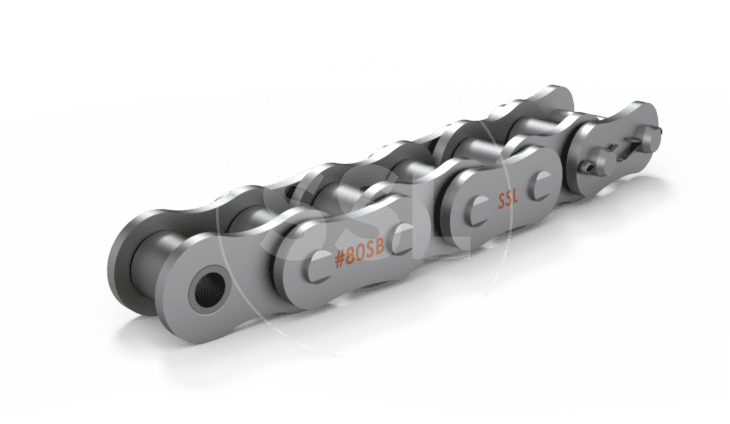

Side Bow Roller Chains
Side bow roller chain​​s by CAN-AM are similar to standard roller chains except having extra clearance between pins, bushings & link plates providing excellent curve & twist going capabilities for conveying systems. Side Bow roller chains generally have smaller pin diameters meaning they carry lower loads & can be used with standard sprockets.
Used widely in bottling, canning, & packaging industries
Ideal for applications requiring chains to curve, twist & flex
Manufactured from the same materials & specifications as CAN-AM standard roller chains
Availability
​​​​​​​Pitch Sizes​​​​​​
1/2″ to 1Â 1/2″
​​​​​Strands​​​​
​Simplex
​​​​Lengths​​​
​10ft boxes or 50ft rolls
​​​​Connector Links Available​​​​
​​Yes​
​​​​​Attachments Available​​​​
​​Yes​
​​​​​Sprockets Available​​​​
​​Yes​
​Features
​Curved Applications?
Perfect solution to applications that require chains to curve, twist & flex.
​Need Attachments?
​The standard and special attachments can be fitted to Side Bow chains allowing for a multitude of conveying requirements.
Other Materials?
​Side Bow chains can be supplied in stainless steel and different coatings or plating to suit your individual requirements.
​Require Double Pitch?
CAN-AM Side Bow chains are also available in double pitch & are better suited when shaft centres are relativity long. Available in standard roller or carrier roller type.​
Side Bow Roller Chain Range
| Pitch (inches) | Standard (ANSI) | Double Pitch Standard Roller (ANSI) | Double Pitch Carrier Roller (ANSI) |
|---|---|---|---|
| 1/2" | 40-1SB | - | - |
| 5/8" | 50-1SB | - | - |
| 3/4" | 60-1SB | - | - |
| 1" | 80-1SB | C2040-SB | C2042-SB |
| 1 1/4" | - | C2050-SB | C2052-SB |
| 1 1/2" | - | C2060-SB | C2062-SB |
| Other sizes on request |
