UHMWPE Virgin
UHMWPE Virgin is one of the most versatile & commonly used thermoplastics in industrial & commercial applications. Also known as PE1000 virgin & often referred to the world's toughest polymer, virgin ultra high molecular weight polyethylene exhibits properties such as superior impact strength, high abrasion resistance, is tough, durable & has excellent chemical resistance. Various virgin UHMWPE products are FDA and EU 10/2011 approved for food contact and can be used in cold applications below -200°C.
Natural unfilled, 100% virgin resin
FDA & EU 10/2011 grades available for food contact
Extremely tough & durable

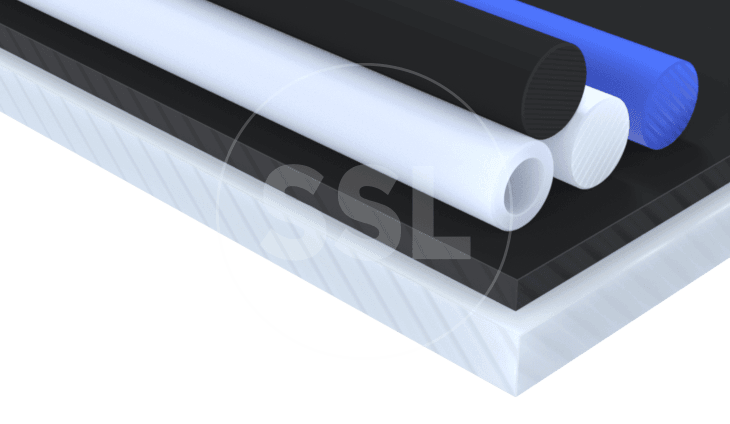

Availability
Rod
6mm to 380mm
Tube
200mm ID to 1280mm OD
Sheet
4mm to 400mm Thick
Colours
Yes, Natural ex stock
Modified Grades
Yes
Cut To Size
Yes, however some grades have minimum order quantity
Features
Unique to UHMWPE
Ultra high molecular weight polyethylene is lightweight compared to other thermoplastics & will float in water. Virtually indestructible & will outwear steel 6 times over in the right application. Due to its ultra-high molecular weight it has no notch sensitively, has exceptional impact resistance & will not easily crack or chip.
Modified Grades
Other grades are available on request offering specific properties such as anti-microbial which includes biocidal additives, electrically dissipative grades with anti-static properties, electrically conductive grades for electrical engineering, & UV resistant grades for outdoor or UV applications.
Applications
UHMWPE Virgin is often CNC machined into parts that are widely used in the food processing & bottling industries. Other common applications include chain wear strips & guides, star wheels & feed screws, conveyor curves, self-lubricating bearings & bushes, pump & valve components, rollers, paddles & idler sprockets, plus many more.
Long Term Service Temp
'-269°C to +90°C
Moisture Absorption
UV Stable
Comprehensive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
UHMWPE Virgin Range
| Product Type | Description | Available Products & Notes |
|---|---|---|
| UHMWPE Virgin Natural | FDA & EU Approved Colour | Rod, Tube, Sheet Some items may be indent only |
| UHMWPE Virgin Blue | FDA & EU Approved Colour | Rod & Sheet Some items may be indent only |
| UHMWPE Virgin Green | FDA & EU Approved Colour | Rod & Sheet Some items may be indent only |
| UHMWPE Virgin Black | FDA & EU Approved Colour | Rod & Sheet Some items may be indent only |
Suppliers
Related Products / Services
UHMWPE Premium
UHMWPE Premium is our superior abrasion resistant grade of Ultra High Molecular Weight Polyethylene. The highest molecular weight of 7-9 million g/mol for high impact strength and excellent sliding properties. With additives for unparalleled wear resistance and UV stabilisation.
ColourGrey & Orange
SpecsOKULEN 2000
LT Service Temp90ºC
HMWPE PE500
HMWPE PE500 is a general purpose polyethylene with excellent mechanical properties suitable for less demanding applications that would otherwise require UHMWPE. Widely used in the New Zealand food industry.
ColourNatural, Black & Colours
SpecsOKULEN 500
LT Service Temp90ºC
HDPE PE300
HDPE PE300 has about 6% of the impact strength and only 25% of the abrasion resistance when compared to UHMWPE. HDPE has a higher tensile strength and is the hardest material of the two. It can be supplied with a glossy or embossed finish.
ColourNatural, Black & Colours
SpecsDensetec™ HDPE
LT Service Temp90ºC
