PET

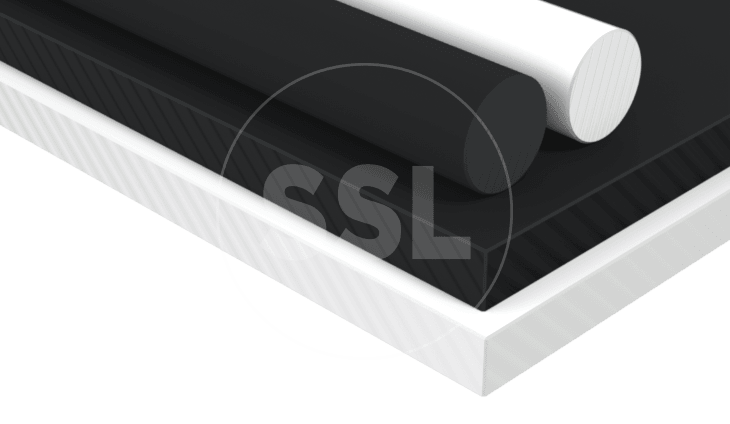

PET polyethylene terephthalate thermoplastic is a polyester that offers a good combination of hardness, rigidity, strength with exceptional sliding & wear capabilities. Creep resistance & low moisture absorption makes it suitable for complex parts requiring high dimensional stability & surface quality. Long term service temperatures from -20°C to +110°C.
High mechanical strength, hardness & stiffness
Exceptional dimensional stability & surface finish
Very low moisture absorption (when compared to nylon)
Availability
Rod
10mm to 200mm OD
Tube
N/A
Sheet
2mm to 120mm Thick
Colours
White, Black, Grey
Modified Grades
Yes
Cut To Size
Yes
Features
Exceptional Material
TECAPET/TECADUR PET due to having very low levels of moisture absorption, combined with high mechanical strength, stiffness, hardness, resistance to creep makes it highly suitable for components requiring dimensional stability & tight tolerances. The TECAPET/TECADUR range includes grades suitable for food contact. The material is also resistant to many chemicals.
Additives & Modifiers
There are four grades of TECAPET/TECADUR available. The standard TECADUR Natural unfilled grade, TECAPET Black offering UV protection, TECAPET White offering enhanced machinability & lastly TECAPET TF Grey that is PTFE filled for improved wear & sliding properties.
Applications
TECAPET/TECADUR is used in various industries such as: mechanical engineering, food, electronics, automotive & medical. Some components fabricated from PET include: food processing parts, precision finished components, parts in wet environments, heavily loaded bearings, bushings & washers, structural parts, rudder bearings, flow valves, pistons & rollers.
Long Term Service Temp
'-20°C to +110°C
Moisture Absorption
UV Stable
Compressive Strength
Impact Strength
Tensile Strength
Coefficient of Friction
Abrasion Resistance
Cost
PET Range
| Product Type | Industry Usage | Available Products & Notes *Some items are manufactured & imported on request |
|---|---|---|
| TECADUR PET Natural | Mechanical, Food, Electronics, Automotive, Medical Technologies | Rod & Sheet - Natural unfilled & unmodified PET White *Good creep strength, low moisture absorption, outstanding dimensional stability. FDA approved. |
| TECAPET White | Mechanical, Food, Energy, Electronics, Automotive Technologies | Rod & Sheet - White Pigment Filled - Special Formulation White *Improved toughness, excellent sliding & wear properties. Low coefficient of friction FDA & EU10/2011 approved. |
| TECAPET Black | Mechanical, Food, Electronics, Automotive Technologies | Rod & Sheet - Black Pigment Filled Black *Improved machining properties. Improved UV protection. FDA approved. |
| TECAPET TF Grey | Mechanical, Food, Electronics, Automotive Technologies | Rod & Sheet - PTFE Solid Lubricant Filled Grey *Improved wear characteristics. Used widely in food processing. Excellent sliding properties, excellent wear with all other standard PET properties. FDA & EU10/2011 approved. |
Suppliers
Related Products / Services
Acetal POM C & H
Acetal POM offers low moisture absorption, good fatigue strength and rigidity, Its dimensional stability is great for precision parts with tight tolerances. Good sliding characteristics, retains impact strength even at low temperatures and is easily machined.
ColourNatural, Black & Various Colours
SpecsTECAFORM
LT Service Temp100ºC
PEEK Plastic
PEEK plastic offers excellent sliding properties & mechanical properties, even when under thermal load. Excellent resistance to chemicals. Universal material for highly stressed parts.
ColourNatural, Black & Various Colours
SpecsTECAPEEK
LT Service Temp260°C
PTFE (Teflon®)
PTFE Teflon® has a continuous service temperature of 260°C. Amazing sliding characteristics, as well as excellent electrical properties. Flame retardant. Fillers available such as glass, carbon, bronze to improve properties.
ColourWhite & colours
SpecsGUARNIFLON®
LT Service Temp260°C
